# .monash-blue.outline-text[Using Remote Sensing Data to Understand Fire Ignition during the 2019-2020 Australia Bushfire Season]

.bottom_abs.width100[

*Weihao Li, Chang L., **Di Cook**, Emily Dodwell*

[https://bit.ly/VicBushFireIgnition](https://bit.ly/VicBushFireIgnition)

ACEMS Retreat, Nov 6 2020

]

]]

---
# People and motivation

<table>
<tr>
<td> <img src="images/weihao.jpg" style="width: 200px; border-radius: 30%"> </td>
<td width="100px"> </td>
<td> <img src="images/emily.jpg" style="width: 180px; border-radius: 50%"> </td>
</tr>
<tr>
<td> Weihao Li </td>
<td> </td>
<td>
Emily Dodwell </td>
</tr>
<tr>
<td> Monash EBS Honours </td>
<td> </td>
<td>
AT&T research </td>
</tr>
</table>

*Motivation*: Spatio-temporal visualisation and analysis of emergency call data. This is private so the bushfire data was collected because it has some similar form and structure.

---
# 🗺 Background

<h2>⚡ Lightning or 🔥Arson?</h2>

---

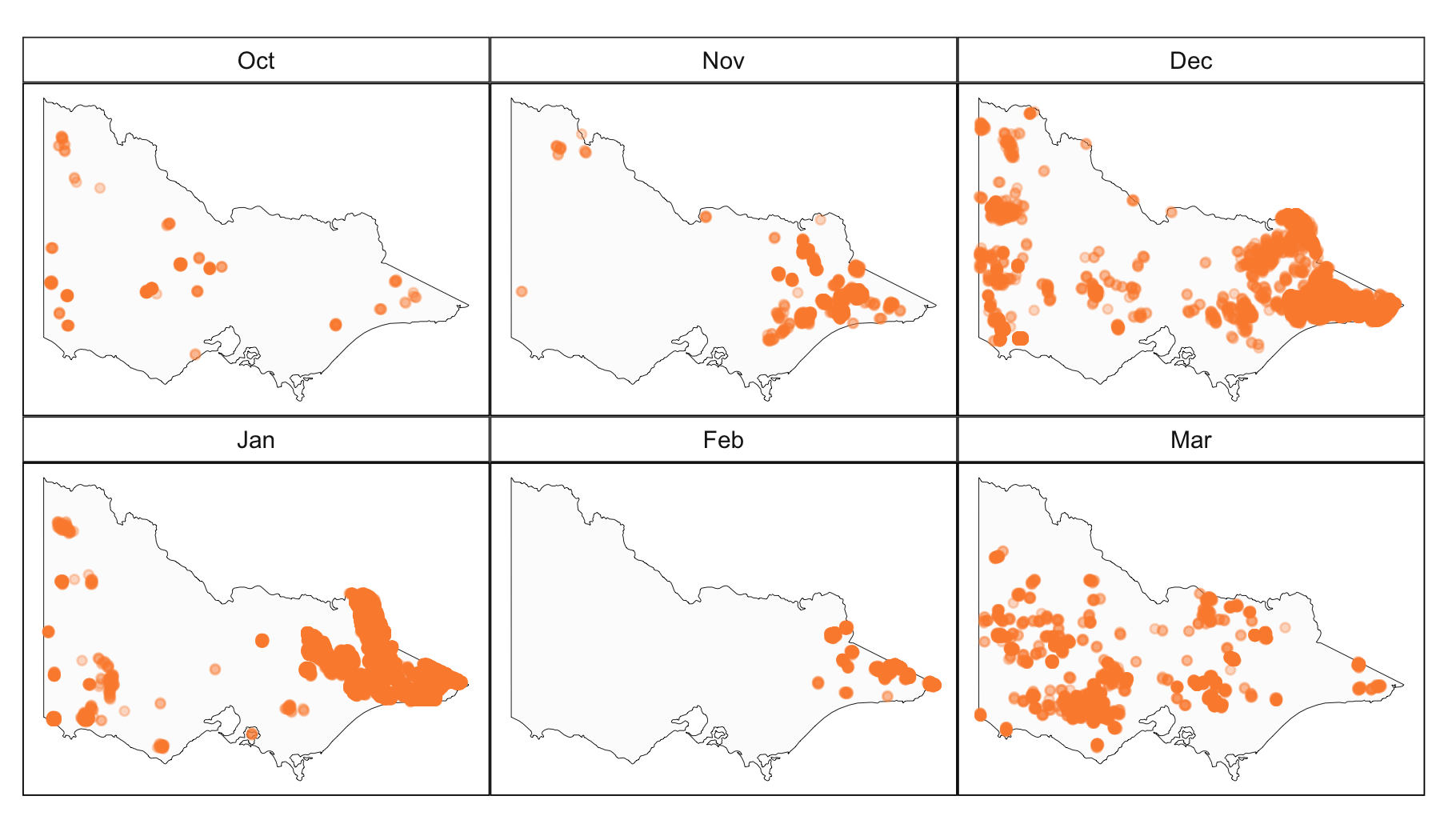

# 📡 Remote sensing data

Japan Aerospace Exploration Agency  provides a hotspot product (reflected energy from the earth) taken from the **Himawari-8** satellite.

.footnote[[Example code to access data provided in a G. Williamson gist post](https://gist.github.com/ozjimbob/80254988922140fec4c06e3a43d069a6)]

---
# 📂 Data Sources

.monash-red2[**🔥 Historical fire origins**]: 2000-2019 .font_my_2[[Department of Environment, Land, Water and Planning](https://discover.data.vic.gov.au/dataset/fire-origins-current-and-historical)]

.monash-red2[**📡 Remote sensing data**]: .font_my_2[[Japan Aerospace Exploration Agency](https://www.eorc.jaxa.jp/ptree/userguide.html)]

.font_my[
**Wind speed data**: 1-day, 7-day, ..., 2-year averages from .font_my_2[[Commonwealth Scientific and Industrial Research Organisation and Automated Surface Observing System](https://doi.org/10.25919/5c5106acbcb02)]

**Temperature, Rainfall and Solar exposure**: 1-day, 7-day , 14-day, 28-day, ..., 720-day averages computed from .font_my_2[[Bureau of Meteorology](https://CRAN.R-project.org/package=bomrang)]

**Fuel layer**: Forest type, forest height class, forest crown cover from .font_my_2[[Australian Bureau of Agricultural and Resource Economics](https://www.agriculture.gov.au/abares/forestsaustralia/forest-data-maps-and-tools/spatial-data/forest-cover)]

**Road map**: Proximity to the nearest road using .font_my_2[[OpenStreetMap](%20https://www.openstreetmap.org%20)]

**Fire stations**: Proximity to the nearest CFA station  .font_my_2[[Department of Environment, Land, Water and Planning](https://discover.data.vic.gov.au/dataset/cfa-fire-station-vmfeat-geomark_point)]

**Recreation sites**: Proximity to the nearest camping site .font_my_2[[Department of Environment, Land, Water and Planning](https://discover.data.vic.gov.au/dataset/recreation-sites)]
]

---

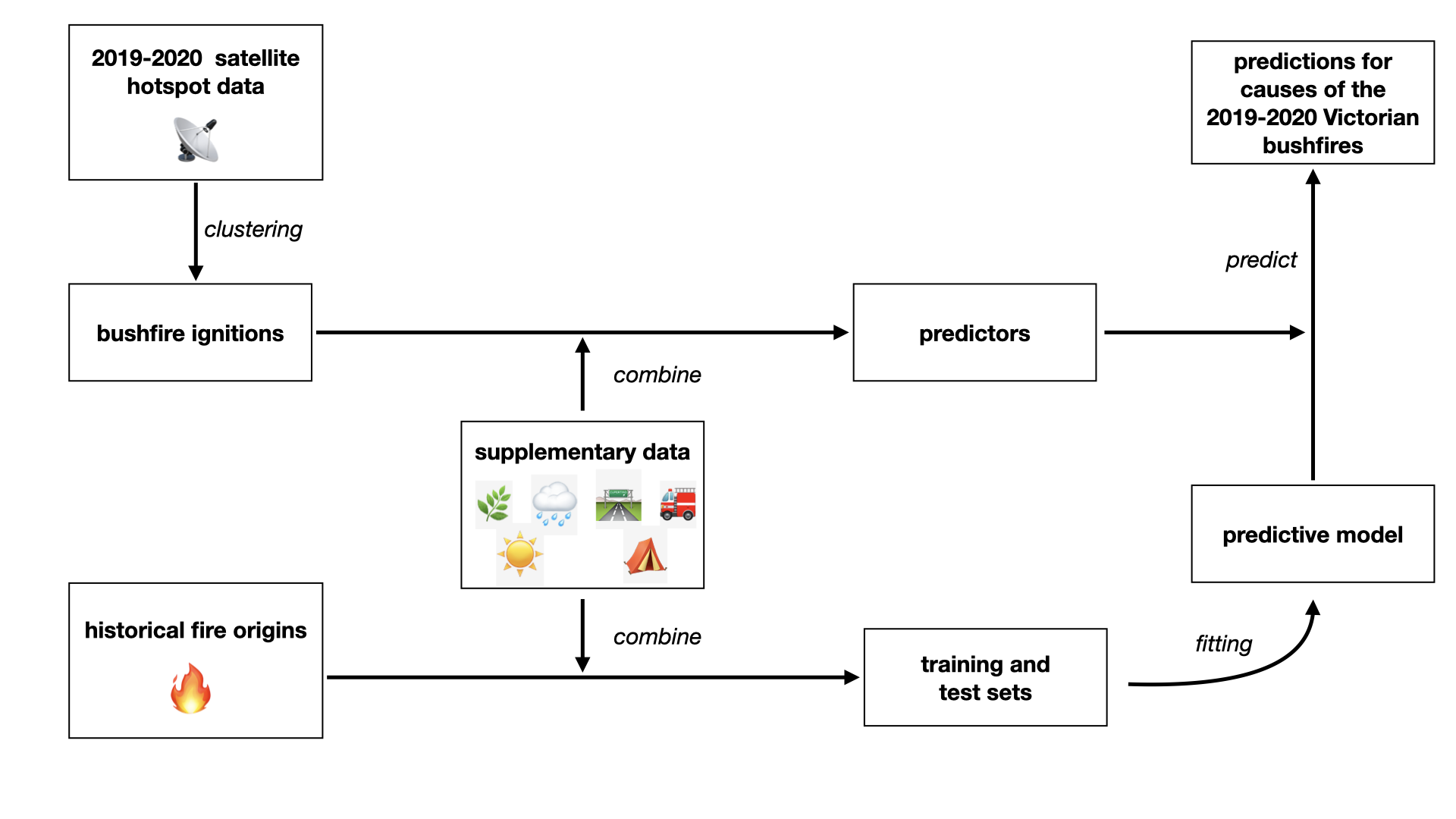

# 💻 Data fusion

---

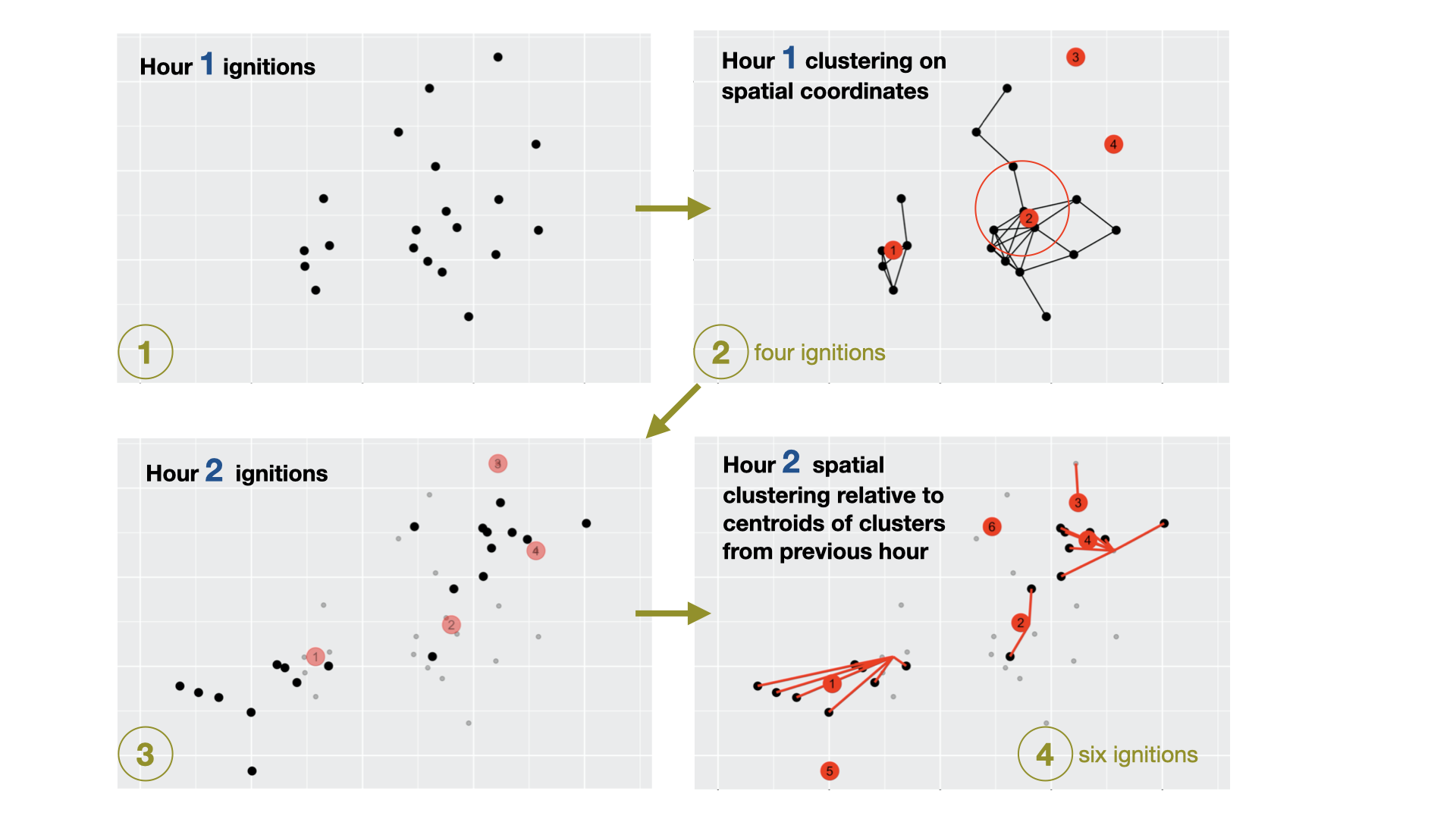

# 💻 Detect ignitions by clustering hotspot data

---
# 💻 Estimated ignitions

76,000 hotspots reduced to 1,000 ignition sites.

---

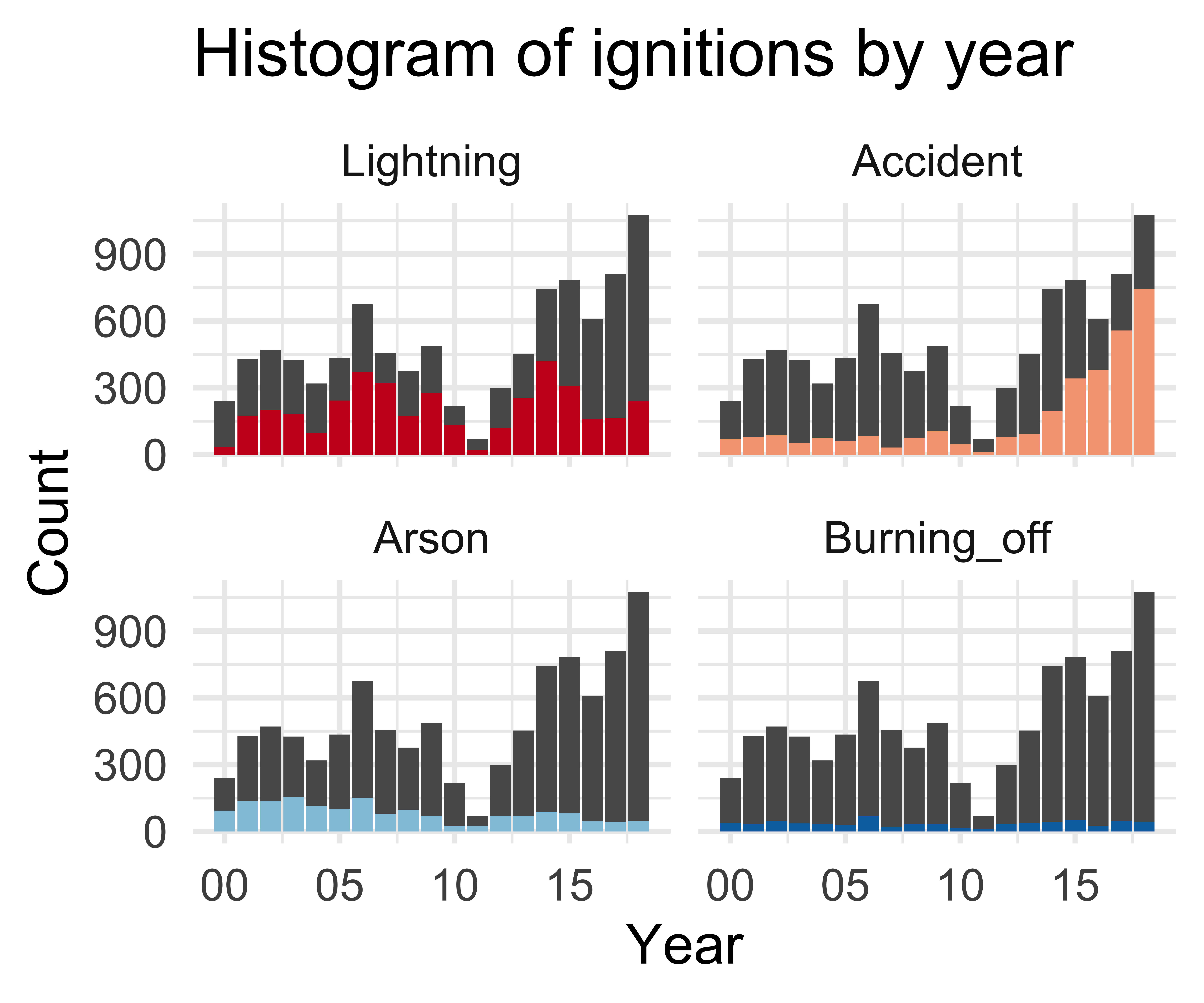

# 📊 Exploratory analysis of historical fire origins

.font_my_2[

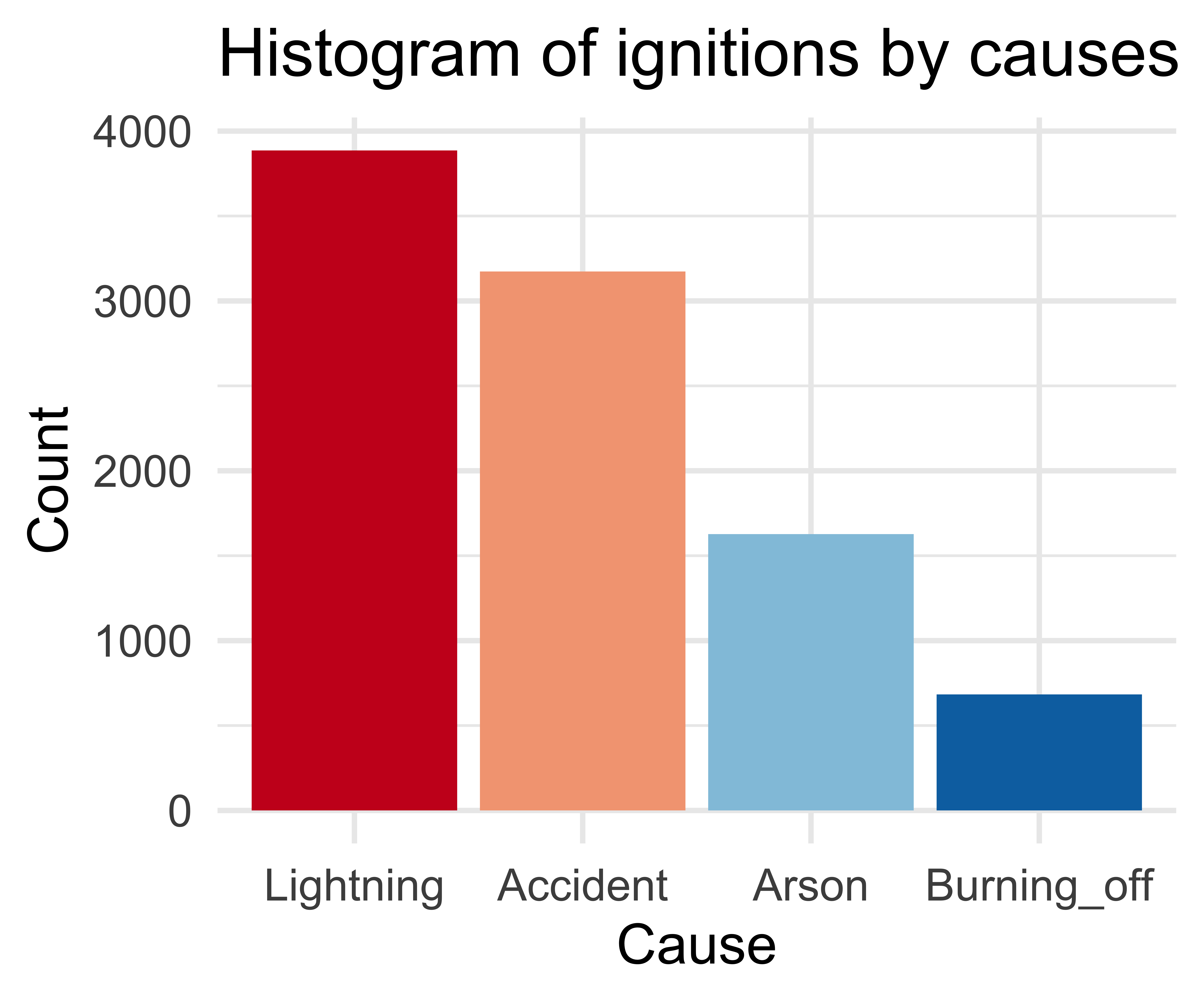

Text processing of 26 causes, reduced to four major causes. Lightning and accident were the two main sources of historical bushfire ignitions, which took up 41% and 34% respectively. There were 17% bushfires caused by arson.
]

---
# 📊 Spatial distribution of historical fire origins

.font_my_2[
Roughly different spatial locations of ignition causes.  Lightning bushfires were concentrated in the east of Victoria. Bushfires caused by arson were near Bendigo!
]

---

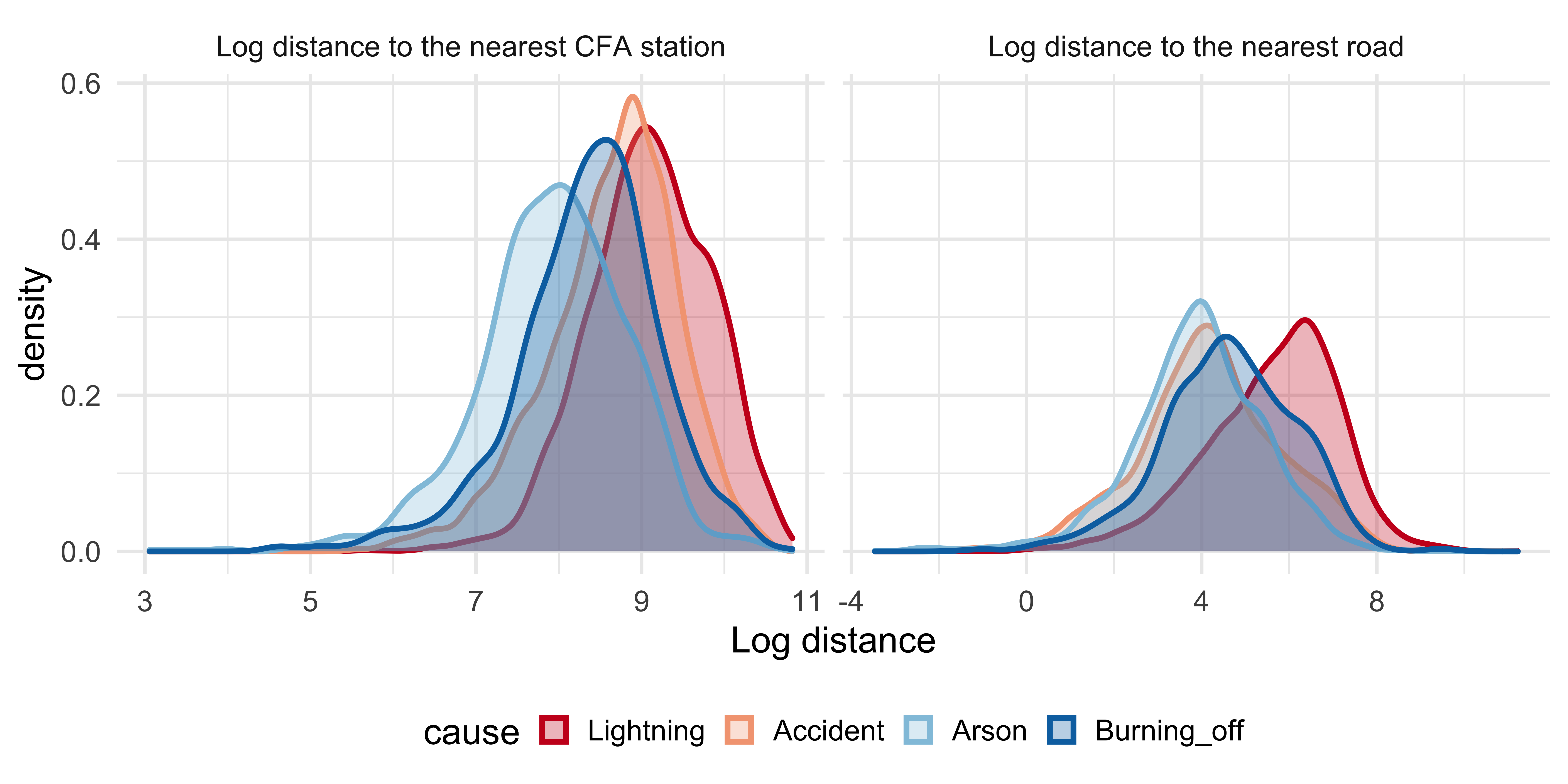

# 📊 Proximity of historical fire origins

.font_my_2[
Lightning-caused bushfires were further away from the CFA stations and roads. In contrast, bushfires caused by arson were closer to CFA stations and roads.
]

---
# 📐 Modelling

.monash-blue[A **random forest** model outperformed other model choices to classify different causes of bushfire ignition. ]

.monash-blue[.font_my_2[80% of the data used as training set, 7497 observations, and the remaining 1872 observations was used as test set.]]

.font_my_2[
Model performance was compared using multi-class AUC (Hand and Till, 2001).]

---
# 📐 Model performance

.font_my[
.monash-blue[The overall accuracy of our model was 74.95%.]

- High accuracy with lightning and accident ignitions.
- Less accurate predictions for arson and burning off.
]

<table class=" lightable-classic table" style="font-family: Cambria; width: auto !important; margin-left: auto; margin-right: auto; font-size: 20px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> </th>
 <th style="text-align:left;"> Lightning </th>
 <th style="text-align:left;"> Accident </th>
 <th style="text-align:left;"> Arson </th>
 <th style="text-align:left;"> Burning_off </th>
 <th style="text-align:right;"> Total </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Prediction:Lightning </td>
 <td style="text-align:left;"> 703 (0.9) </td>
 <td style="text-align:left;"> 77 (0.12) </td>
 <td style="text-align:left;"> 50 (0.15) </td>
 <td style="text-align:left;"> 44 (0.32) </td>
 <td style="text-align:right;"> 874 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Prediction:Accident </td>
 <td style="text-align:left;"> 51 (0.07) </td>
 <td style="text-align:left;"> 494 (0.78) </td>
 <td style="text-align:left;"> 89 (0.27) </td>
 <td style="text-align:left;"> 38 (0.28) </td>
 <td style="text-align:right;"> 672 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Prediction:Arson </td>
 <td style="text-align:left;"> 18 (0.02) </td>
 <td style="text-align:left;"> 55 (0.09) </td>
 <td style="text-align:left;"> 175 (0.54) </td>
 <td style="text-align:left;"> 22 (0.16) </td>
 <td style="text-align:right;"> 270 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Prediction:Burning_off </td>
 <td style="text-align:left;"> 5 (0.01) </td>
 <td style="text-align:left;"> 8 (0.01) </td>
 <td style="text-align:left;"> 11 (0.03) </td>
 <td style="text-align:left;"> 32 (0.24) </td>
 <td style="text-align:right;"> 56 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Total </td>
 <td style="text-align:left;"> 777 </td>
 <td style="text-align:left;"> 634 </td>
 <td style="text-align:left;"> 325 </td>
 <td style="text-align:left;"> 136 </td>
 <td style="text-align:right;"> 1872 </td>
 </tr>
</tbody>
</table>

---

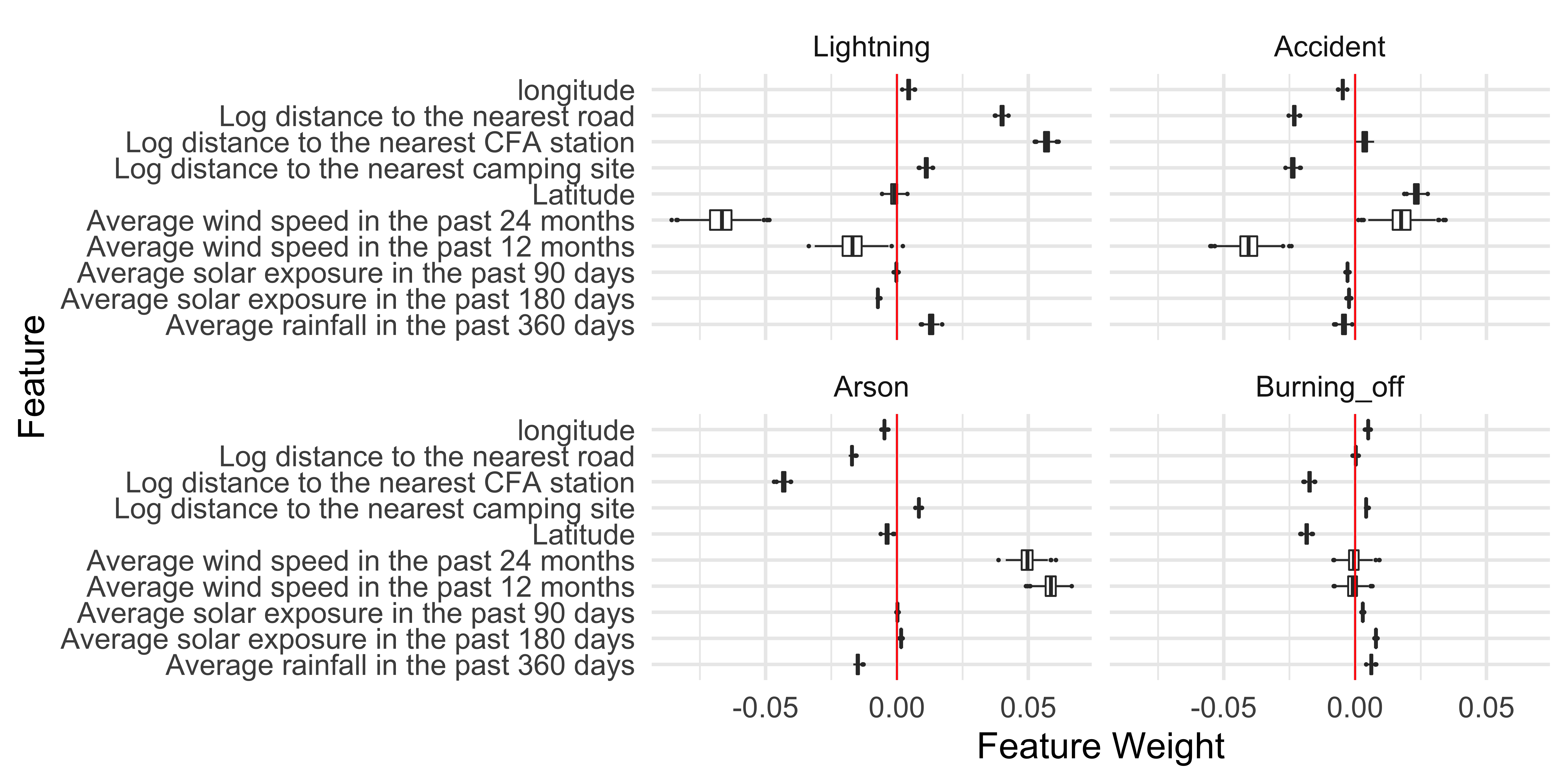

# 📐 Model interpretation

.font_my_2[
Variable importance assessed using [Local Interpretable Model-agnostic Explanations (lime)](https://lime.data-imaginist.com). Proximity to the nearest road, proximity to the nearest road and average wind speed had largest influence on the prediction.
]

---

# 🔎  **Prediction for 2019-2020 Australia bushfires**

<div id="htmlwidget-8c30da6da0c020679f55" style="width:100%;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-8c30da6da0c020679f55">{"x":{"data":[{"x":[142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,142,null,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,null,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,146,null,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,148,null,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,150,null,140.516836346015,140.606060606061,140.727272727273,140.848484848485,140.969696969697,141.090909090909,141.212121212121,141.333333333333,141.454545454545,141.575757575758,141.69696969697,141.818181818182,141.939393939394,142.060606060606,142.181818181818,142.30303030303,142.424242424242,142.545454545455,142.666666666667,142.787878787879,142.909090909091,143.030303030303,143.151515151515,143.272727272727,143.393939393939,143.515151515152,143.636363636364,143.757575757576,143.878787878788,144,144.121212121212,144.242424242424,144.363636363636,144.484848484848,144.606060606061,144.727272727273,144.848484848485,144.969696969697,145.090909090909,145.212121212121,145.333333333333,145.454545454545,145.575757575758,145.69696969697,145.818181818182,145.939393939394,146.060606060606,146.181818181818,146.30303030303,146.424242424242,146.545454545455,146.666666666667,146.787878787879,146.909090909091,147.030303030303,147.151515151515,147.272727272727,147.393939393939,147.515151515152,147.636363636364,147.757575757576,147.878787878788,148,148.121212121212,148.242424242424,148.363636363636,148.484848484848,148.606060606061,148.727272727273,148.848484848485,148.969696969697,149.090909090909,149.212121212121,149.333333333333,149.454545454545,149.575757575758,149.69696969697,149.818181818182,149.939393939394,150.060606060606,150.181818181818,150.30303030303,150.422324539651,null,140.516836346015,140.606060606061,140.727272727273,140.848484848485,140.969696969697,141.090909090909,141.212121212121,141.333333333333,141.454545454545,141.575757575758,141.69696969697,141.818181818182,141.939393939394,142.060606060606,142.181818181818,142.30303030303,142.424242424242,142.545454545455,142.666666666667,142.787878787879,142.909090909091,143.030303030303,143.151515151515,143.272727272727,143.393939393939,143.515151515152,143.636363636364,143.757575757576,143.878787878788,144,144.121212121212,144.242424242424,144.363636363636,144.484848484848,144.606060606061,144.727272727273,144.848484848485,144.969696969697,145.090909090909,145.212121212121,145.333333333333,145.454545454545,145.575757575758,145.69696969697,145.818181818182,145.939393939394,146.060606060606,146.181818181818,146.30303030303,146.424242424242,146.545454545455,146.666666666667,146.787878787879,146.909090909091,147.030303030303,147.151515151515,147.272727272727,147.393939393939,147.515151515152,147.636363636364,147.757575757576,147.878787878788,148,148.121212121212,148.242424242424,148.363636363636,148.484848484848,148.606060606061,148.727272727273,148.848484848485,148.969696969697,149.090909090909,149.212121212121,149.333333333333,149.454545454545,149.575757575758,149.69696969697,149.818181818182,149.939393939394,150.060606060606,150.181818181818,150.30303030303,150.422324539651,null,140.516836346015,140.606060606061,140.727272727273,140.848484848485,140.969696969697,141.090909090909,141.212121212121,141.333333333333,141.454545454545,141.575757575758,141.69696969697,141.818181818182,141.939393939394,142.060606060606,142.181818181818,142.30303030303,142.424242424242,142.545454545455,142.666666666667,142.787878787879,142.909090909091,143.030303030303,143.151515151515,143.272727272727,143.393939393939,143.515151515152,143.636363636364,143.757575757576,143.878787878788,144,144.121212121212,144.242424242424,144.363636363636,144.484848484848,144.606060606061,144.727272727273,144.848484848485,144.969696969697,145.090909090909,145.212121212121,145.333333333333,145.454545454545,145.575757575758,145.69696969697,145.818181818182,145.939393939394,146.060606060606,146.181818181818,146.30303030303,146.424242424242,146.545454545455,146.666666666667,146.787878787879,146.909090909091,147.030303030303,147.151515151515,147.272727272727,147.393939393939,147.515151515152,147.636363636364,147.757575757576,147.878787878788,148,148.121212121212,148.242424242424,148.363636363636,148.484848484848,148.606060606061,148.727272727273,148.848484848485,148.969696969697,149.090909090909,149.212121212121,149.333333333333,149.454545454545,149.575757575758,149.69696969697,149.818181818182,149.939393939394,150.060606060606,150.181818181818,150.30303030303,150.422324539651,null,140.516836346015,140.606060606061,140.727272727273,140.848484848485,140.969696969697,141.090909090909,141.212121212121,141.333333333333,141.454545454545,141.575757575758,141.69696969697,141.818181818182,141.939393939394,142.060606060606,142.181818181818,142.30303030303,142.424242424242,142.545454545455,142.666666666667,142.787878787879,142.909090909091,143.030303030303,143.151515151515,143.272727272727,143.393939393939,143.515151515152,143.636363636364,143.757575757576,143.878787878788,144,144.121212121212,144.242424242424,144.363636363636,144.484848484848,144.606060606061,144.727272727273,144.848484848485,144.969696969697,145.090909090909,145.212121212121,145.333333333333,145.454545454545,145.575757575758,145.69696969697,145.818181818182,145.939393939394,146.060606060606,146.181818181818,146.30303030303,146.424242424242,146.545454545455,146.666666666667,146.787878787879,146.909090909091,147.030303030303,147.151515151515,147.272727272727,147.393939393939,147.515151515152,147.636363636364,147.757575757576,147.878787878788,148,148.121212121212,148.242424242424,148.363636363636,148.484848484848,148.606060606061,148.727272727273,148.848484848485,148.969696969697,149.090909090909,149.212121212121,149.333333333333,149.454545454545,149.575757575758,149.69696969697,149.818181818182,149.939393939394,150.060606060606,150.181818181818,150.30303030303,150.422324539651,null,140.516836346015,140.606060606061,140.727272727273,140.848484848485,140.969696969697,141.090909090909,141.212121212121,141.333333333333,141.454545454545,141.575757575758,141.69696969697,141.818181818182,141.939393939394,142.060606060606,142.181818181818,142.30303030303,142.424242424242,142.545454545455,142.666666666667,142.787878787879,142.909090909091,143.030303030303,143.151515151515,143.272727272727,143.393939393939,143.515151515152,143.636363636364,143.757575757576,143.878787878788,144,144.121212121212,144.242424242424,144.363636363636,144.484848484848,144.606060606061,144.727272727273,144.848484848485,144.969696969697,145.090909090909,145.212121212121,145.333333333333,145.454545454545,145.575757575758,145.69696969697,145.818181818182,145.939393939394,146.060606060606,146.181818181818,146.30303030303,146.424242424242,146.545454545455,146.666666666667,146.787878787879,146.909090909091,147.030303030303,147.151515151515,147.272727272727,147.393939393939,147.515151515152,147.636363636364,147.757575757576,147.878787878788,148,148.121212121212,148.242424242424,148.363636363636,148.484848484848,148.606060606061,148.727272727273,148.848484848485,148.969696969697,149.090909090909,149.212121212121,149.333333333333,149.454545454545,149.575757575758,149.69696969697,149.818181818182,149.939393939394,150.060606060606,150.181818181818,150.30303030303,150.422324539651,null,140.516836346015,140.606060606061,140.727272727273,140.848484848485,140.969696969697,141.090909090909,141.212121212121,141.333333333333,141.454545454545,141.575757575758,141.69696969697,141.818181818182,141.939393939394,142.060606060606,142.181818181818,142.30303030303,142.424242424242,142.545454545455,142.666666666667,142.787878787879,142.909090909091,143.030303030303,143.151515151515,143.272727272727,143.393939393939,143.515151515152,143.636363636364,143.757575757576,143.878787878788,144,144.121212121212,144.242424242424,144.363636363636,144.484848484848,144.606060606061,144.727272727273,144.848484848485,144.969696969697,145.090909090909,145.212121212121,145.333333333333,145.454545454545,145.575757575758,145.69696969697,145.818181818182,145.939393939394,146.060606060606,146.181818181818,146.30303030303,146.424242424242,146.545454545455,146.666666666667,146.787878787879,146.909090909091,147.030303030303,147.151515151515,147.272727272727,147.393939393939,147.515151515152,147.636363636364,147.757575757576,147.878787878788,148,148.121212121212,148.242424242424,148.363636363636,148.484848484848,148.606060606061,148.727272727273,148.848484848485,148.969696969697,149.090909090909,149.212121212121,149.333333333333,149.454545454545,149.575757575758,149.69696969697,149.818181818182,149.939393939394,150.060606060606,150.181818181818,150.30303030303,150.422324539651],"y":[-39.4028770687892,-39.3636363636364,-39.2929292929293,-39.2222222222222,-39.1515151515151,-39.0808080808081,-39.010101010101,-38.9393939393939,-38.8686868686869,-38.7979797979798,-38.7272727272727,-38.6565656565657,-38.5858585858586,-38.5151515151515,-38.4444444444444,-38.3737373737374,-38.3030303030303,-38.2323232323232,-38.1616161616162,-38.0909090909091,-38.020202020202,-37.9494949494949,-37.8787878787879,-37.8080808080808,-37.7373737373737,-37.6666666666667,-37.5959595959596,-37.5252525252525,-37.4545454545455,-37.3838383838384,-37.3131313131313,-37.2424242424242,-37.1717171717172,-37.1010101010101,-37.030303030303,-36.959595959596,-36.8888888888889,-36.8181818181818,-36.7474747474747,-36.6767676767677,-36.6060606060606,-36.5353535353535,-36.4646464646465,-36.3939393939394,-36.3232323232323,-36.2525252525253,-36.1818181818182,-36.1111111111111,-36.040404040404,-35.969696969697,-35.8989898989899,-35.8282828282828,-35.7575757575758,-35.6868686868687,-35.6161616161616,-35.5454545454545,-35.4747474747475,-35.4040404040404,-35.3333333333333,-35.2626262626263,-35.1919191919192,-35.1212121212121,-35.0505050505051,-34.979797979798,-34.9090909090909,-34.8383838383838,-34.7676767676768,-34.6969696969697,-34.6262626262626,-34.5555555555556,-34.4848484848485,-34.4141414141414,-34.3434343434343,-34.2727272727273,-34.2020202020202,-34.1313131313131,-34.0606060606061,-33.989898989899,-33.9191919191919,-33.8484848484849,-33.7777777777778,-33.7285273374254,null,-39.4028770687892,-39.3636363636364,-39.2929292929293,-39.2222222222222,-39.1515151515151,-39.0808080808081,-39.010101010101,-38.9393939393939,-38.8686868686869,-38.7979797979798,-38.7272727272727,-38.6565656565657,-38.5858585858586,-38.5151515151515,-38.4444444444444,-38.3737373737374,-38.3030303030303,-38.2323232323232,-38.1616161616162,-38.0909090909091,-38.020202020202,-37.9494949494949,-37.8787878787879,-37.8080808080808,-37.7373737373737,-37.6666666666667,-37.5959595959596,-37.5252525252525,-37.4545454545455,-37.3838383838384,-37.3131313131313,-37.2424242424242,-37.1717171717172,-37.1010101010101,-37.030303030303,-36.959595959596,-36.8888888888889,-36.8181818181818,-36.7474747474747,-36.6767676767677,-36.6060606060606,-36.5353535353535,-36.4646464646465,-36.3939393939394,-36.3232323232323,-36.2525252525253,-36.1818181818182,-36.1111111111111,-36.040404040404,-35.969696969697,-35.8989898989899,-35.8282828282828,-35.7575757575758,-35.6868686868687,-35.6161616161616,-35.5454545454545,-35.4747474747475,-35.4040404040404,-35.3333333333333,-35.2626262626263,-35.1919191919192,-35.1212121212121,-35.0505050505051,-34.979797979798,-34.9090909090909,-34.8383838383838,-34.7676767676768,-34.6969696969697,-34.6262626262626,-34.5555555555556,-34.4848484848485,-34.4141414141414,-34.3434343434343,-34.2727272727273,-34.2020202020202,-34.1313131313131,-34.0606060606061,-33.989898989899,-33.9191919191919,-33.8484848484849,-33.7777777777778,-33.7285273374254,null,-39.4028770687892,-39.3636363636364,-39.2929292929293,-39.2222222222222,-39.1515151515151,-39.0808080808081,-39.010101010101,-38.9393939393939,-38.8686868686869,-38.7979797979798,-38.7272727272727,-38.6565656565657,-38.5858585858586,-38.5151515151515,-38.4444444444444,-38.3737373737374,-38.3030303030303,-38.2323232323232,-38.1616161616162,-38.0909090909091,-38.020202020202,-37.9494949494949,-37.8787878787879,-37.8080808080808,-37.7373737373737,-37.6666666666667,-37.5959595959596,-37.5252525252525,-37.4545454545455,-37.3838383838384,-37.3131313131313,-37.2424242424242,-37.1717171717172,-37.1010101010101,-37.030303030303,-36.959595959596,-36.8888888888889,-36.8181818181818,-36.7474747474747,-36.6767676767677,-36.6060606060606,-36.5353535353535,-36.4646464646465,-36.3939393939394,-36.3232323232323,-36.2525252525253,-36.1818181818182,-36.1111111111111,-36.040404040404,-35.969696969697,-35.8989898989899,-35.8282828282828,-35.7575757575758,-35.6868686868687,-35.6161616161616,-35.5454545454545,-35.4747474747475,-35.4040404040404,-35.3333333333333,-35.2626262626263,-35.1919191919192,-35.1212121212121,-35.0505050505051,-34.979797979798,-34.9090909090909,-34.8383838383838,-34.7676767676768,-34.6969696969697,-34.6262626262626,-34.5555555555556,-34.4848484848485,-34.4141414141414,-34.3434343434343,-34.2727272727273,-34.2020202020202,-34.1313131313131,-34.0606060606061,-33.989898989899,-33.9191919191919,-33.8484848484849,-33.7777777777778,-33.7285273374254,null,-39.4028770687892,-39.3636363636364,-39.2929292929293,-39.2222222222222,-39.1515151515151,-39.0808080808081,-39.010101010101,-38.9393939393939,-38.8686868686869,-38.7979797979798,-38.7272727272727,-38.6565656565657,-38.5858585858586,-38.5151515151515,-38.4444444444444,-38.3737373737374,-38.3030303030303,-38.2323232323232,-38.1616161616162,-38.0909090909091,-38.020202020202,-37.9494949494949,-37.8787878787879,-37.8080808080808,-37.7373737373737,-37.6666666666667,-37.5959595959596,-37.5252525252525,-37.4545454545455,-37.3838383838384,-37.3131313131313,-37.2424242424242,-37.1717171717172,-37.1010101010101,-37.030303030303,-36.959595959596,-36.8888888888889,-36.8181818181818,-36.7474747474747,-36.6767676767677,-36.6060606060606,-36.5353535353535,-36.4646464646465,-36.3939393939394,-36.3232323232323,-36.2525252525253,-36.1818181818182,-36.1111111111111,-36.040404040404,-35.969696969697,-35.8989898989899,-35.8282828282828,-35.7575757575758,-35.6868686868687,-35.6161616161616,-35.5454545454545,-35.4747474747475,-35.4040404040404,-35.3333333333333,-35.2626262626263,-35.1919191919192,-35.1212121212121,-35.0505050505051,-34.979797979798,-34.9090909090909,-34.8383838383838,-34.7676767676768,-34.6969696969697,-34.6262626262626,-34.5555555555556,-34.4848484848485,-34.4141414141414,-34.3434343434343,-34.2727272727273,-34.2020202020202,-34.1313131313131,-34.0606060606061,-33.989898989899,-33.9191919191919,-33.8484848484849,-33.7777777777778,-33.7285273374254,null,-39.4028770687892,-39.3636363636364,-39.2929292929293,-39.2222222222222,-39.1515151515151,-39.0808080808081,-39.010101010101,-38.9393939393939,-38.8686868686869,-38.7979797979798,-38.7272727272727,-38.6565656565657,-38.5858585858586,-38.5151515151515,-38.4444444444444,-38.3737373737374,-38.3030303030303,-38.2323232323232,-38.1616161616162,-38.0909090909091,-38.020202020202,-37.9494949494949,-37.8787878787879,-37.8080808080808,-37.7373737373737,-37.6666666666667,-37.5959595959596,-37.5252525252525,-37.4545454545455,-37.3838383838384,-37.3131313131313,-37.2424242424242,-37.1717171717172,-37.1010101010101,-37.030303030303,-36.959595959596,-36.8888888888889,-36.8181818181818,-36.7474747474747,-36.6767676767677,-36.6060606060606,-36.5353535353535,-36.4646464646465,-36.3939393939394,-36.3232323232323,-36.2525252525253,-36.1818181818182,-36.1111111111111,-36.040404040404,-35.969696969697,-35.8989898989899,-35.8282828282828,-35.7575757575758,-35.6868686868687,-35.6161616161616,-35.5454545454545,-35.4747474747475,-35.4040404040404,-35.3333333333333,-35.2626262626263,-35.1919191919192,-35.1212121212121,-35.0505050505051,-34.979797979798,-34.9090909090909,-34.8383838383838,-34.7676767676768,-34.6969696969697,-34.6262626262626,-34.5555555555556,-34.4848484848485,-34.4141414141414,-34.3434343434343,-34.2727272727273,-34.2020202020202,-34.1313131313131,-34.0606060606061,-33.989898989899,-33.9191919191919,-33.8484848484849,-33.7777777777778,-33.7285273374254,null,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,-39,null,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,-38,null,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,-37,null,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,-36,null,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,-35,null,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34,-34],"type":"scatter","mode":"lines","line":{"width":null,"color":"transparent","dash":null},"hoveron":"points","hoverinfo":"none","showlegend":false,"_isGraticule":true,"xaxis":"x","yaxis":"y","frame":null},{"x":[149.972075076304,149.953135613,149.896332227,149.778656446,149.787119988,149.791351759,149.791270379,149.786143425,149.797862175,149.793955925,149.782725457,149.77247155,149.760020379,149.718435092,149.761485222,149.766286655,149.757578972,149.72543379,149.711680535,149.67847741,149.66667728,149.615244988,149.609873894,149.604828321,149.594981316,149.575043165,149.532074415,149.512461785,149.507334832,149.497813347,149.49122155,149.479014519,149.341075066,149.299001498,149.27222741,149.265391472,149.261078321,149.259125196,149.258555535,149.253184441,149.173106316,149.152354363,149.13559004,149.09278405,148.943858269,148.902191602,148.786306186,148.765147332,148.736013217,148.724131707,148.604014519,148.306407097,148.130625847,147.916514519,147.757578972,147.589366082,147.395518425,147.180674675,147.082774285,146.983653191,146.894867384,146.884450717,146.878591342,146.847666863,146.836436394,146.832041863,146.84652754,146.830251498,146.688812696,146.641449415,146.617686394,146.574717644,146.55347741,146.530609571,146.503916863,146.458669467,146.432790561,146.421397332,146.411794467,146.391123894,146.372243686,146.367442254,146.35043379,146.255707227,146.238291863,146.224131707,146.18238366,146.215993686,146.220957879,146.2295028,146.23707116,146.24122155,146.26059004,146.263926629,146.263926629,146.263194207,146.263845248,146.266774936,146.266612175,146.270274285,146.284922722,146.277679884,146.286387566,146.302907748,146.31902103,146.334239129,146.354991082,146.37370853,146.382985873,146.402354363,146.410899285,146.41675866,146.418304884,146.418955925,146.421397332,146.4326278,146.447764519,146.46355228,146.476735873,146.470469597,146.468516472,146.469248894,146.470957879,146.474864129,146.4795028,146.482920769,146.484141472,146.484060092,146.48324629,146.482920769,146.477549675,146.465830925,146.454112175,146.448578321,146.446543816,146.437266472,146.435069207,146.437998894,146.444672071,146.452647332,146.465993686,146.470550977,146.48340905,146.477875196,146.464854363,146.448578321,146.434336785,146.434906446,146.438975457,146.435069207,146.425547722,146.410655144,146.394216342,146.380381707,146.35059655,146.335785352,146.325856967,146.322601759,146.330577019,146.341481967,146.346934441,146.340342644,146.298513217,146.289073113,146.263845248,146.250987175,146.181651238,146.091807488,146.017344597,146.008148634,146.004242384,146.003672722,145.992442254,145.938975457,145.921153191,145.915782097,145.896494988,145.855235222,145.821543816,145.767832879,145.757172071,145.785004102,145.825531446,145.853526238,145.833018425,145.809336785,145.777354363,145.73308353,145.699229363,145.63949629,145.599619988,145.570811394,145.529470248,145.513682488,145.501800977,145.44809004,145.391612175,145.373057488,145.373057488,145.395030144,145.420258009,145.433848504,145.42074629,145.431162957,145.434580925,145.431162957,145.42074629,145.45183353,145.462168816,145.470876498,145.477712436,145.482269727,145.506114129,145.521332227,145.531586134,145.540863477,145.556895379,145.554372592,145.540049675,145.520518425,145.515472852,145.517263217,145.523936394,145.5185653,145.5029403,145.476573113,145.464366082,145.44809004,145.429860873,145.383311394,145.345713738,145.33855228,145.333994988,145.327647332,145.314952019,145.296560092,145.271739129,145.255869988,145.26441491,145.256114129,145.246836785,145.239105665,145.231700066,145.2216903,145.210622592,145.202403191,145.202810092,145.218597852,145.222829623,145.223806186,145.229014519,145.136566602,145.112966342,145.105723504,145.100759311,145.092295769,145.060720248,145.050466342,145.037282748,145.044688347,145.024668816,144.955332879,144.944590691,144.921071811,144.886403842,144.729014519,144.711192254,144.691254102,144.676768425,144.673024936,144.676605665,144.684743686,144.693369988,144.728770379,144.748057488,144.783457879,144.803965691,144.849619988,144.89323978,144.952891472,144.982920769,144.993174675,144.998057488,144.992849155,144.991465691,145.001800977,145.023692254,145.027191602,145.032725457,145.037282748,145.044444207,145.061778191,145.072438998,145.119313998,145.129161004,145.125498894,145.110199415,145.08497155,145.075368686,145.044688347,145.032969597,145.027110222,145.002452019,144.992442254,144.982676629,144.963145379,144.934825066,144.911468946,144.906993035,144.842051629,144.825450066,144.817230665,144.812022332,144.804453972,144.794444207,144.778330925,144.760915561,144.746104363,144.733653191,144.695811394,144.687836134,144.672048373,144.558441602,144.543304884,144.531260613,144.523285352,144.523773634,144.527842644,144.528086785,144.517100457,144.507823113,144.498057488,144.489024285,144.482432488,144.454112175,144.395030144,144.373057488,144.362559441,144.38184655,144.433848504,144.523610873,144.558116082,144.582041863,144.653575066,144.704763217,144.725108269,144.718272332,144.715830925,144.716644727,144.715098504,144.708994988,144.695323113,144.687836134,144.670420769,144.661143425,144.653575066,144.652842644,144.611582879,144.53012129,144.518809441,144.5107528,144.502126498,144.489268425,144.479014519,144.4560653,144.444834832,144.422373894,144.401866082,144.309743686,144.259532097,144.24903405,144.227875196,144.214854363,144.207530144,144.19410241,144.187510613,144.136403842,144.131358269,144.121267123,144.11622155,144.071462436,144.052500847,143.999196811,143.996836785,143.999278191,144.000173373,143.992360873,143.9795028,143.953868035,143.941172722,143.92847741,143.905528191,143.88965905,143.879893425,143.86988366,143.855153842,143.844899936,143.745453321,143.725108269,143.704600457,143.692393425,143.683604363,143.671071811,143.67090905,143.67058353,143.66675866,143.662282748,143.650889519,143.646250847,143.610850457,143.601328972,143.5732528,143.556407097,143.536957227,143.517344597,143.48340905,143.471934441,143.466970248,143.456309441,143.451182488,143.413422071,143.376149936,143.357432488,143.334483269,143.241547071,143.223399285,143.202810092,143.185883009,143.178884311,143.118662957,143.08090254,143.060069207,142.947438998,142.900238477,142.871348504,142.854014519,142.847992384,142.810231967,142.761973504,142.735362175,142.653819207,142.589854363,142.553070509,142.539073113,142.532481316,142.528330925,142.518728061,142.515391472,142.503754102,142.504893425,142.502452019,142.487803582,142.478526238,142.472911004,142.469493035,142.46753991,142.44434655,142.43246504,142.410655144,142.397715691,142.312836134,142.281911655,142.269541863,142.224619988,142.175466342,142.090830925,141.985199415,141.946787957,141.935313347,141.899099155,141.887543165,141.864512566,141.761973504,141.72144616,141.672536655,141.632090691,141.617849155,141.62378991,141.644053582,141.652110222,141.653981967,141.647959832,141.621267123,141.614512566,141.60808353,141.601410352,141.594004754,141.5732528,141.568044467,141.564626498,141.557871941,141.542816602,141.533213738,141.519379102,141.507985873,141.496755405,141.48308353,141.467295769,141.449717644,141.434418165,141.429860873,141.42847741,141.422373894,141.410329623,141.394541863,141.379649285,141.370860222,141.376149936,141.391368035,141.398285352,141.399912957,141.398122592,141.391123894,141.374766472,141.2138778,141.134287957,140.987559441,140.970550977,140.968174193917,140.968015985349,140.967860955718,140.967705926987,140.967602574199,140.967550897356,140.967395867725,140.967240838993,140.967085809363,140.967085809363,140.987239618214,141.000107049701,141.024084914387,141.045582310375,141.13410403897,141.158857050013,141.173016391793,141.181181268301,141.190121291165,141.206657749755,141.214150831795,141.228206821687,141.234614699009,141.241849400429,141.252753127155,141.258489210908,141.265827265116,141.274767287081,141.285774366594,141.299727003698,141.309545525705,141.321741163624,141.330784540174,141.345925734785,141.368663365122,141.391917759397,141.408970981925,141.415223829616,141.446281366092,141.45930382721,141.510670201269,141.518835076877,141.524054396693,141.529583774871,141.537335240229,141.546171910305,141.567927687812,141.581466912868,141.604514601568,141.630972934953,141.665906203209,141.706110468124,141.748536819319,141.770706007976,141.817008090951,141.840985955637,141.887391392299,141.905271438026,141.926665481227,141.938137648733,141.949403110665,141.960358515133,141.971210565016,142.025160760561,142.05125735874,142.077457309707,142.094252150716,142.105259231129,142.122932571281,142.128720330978,142.150114374179,142.164170364071,142.17595258994,142.190421990982,142.199775424996,142.224218377676,142.235122105301,142.238377720355,142.248816359987,142.253984002959,142.255637649358,142.258789910726,142.265869581616,142.272897576562,142.284886508905,142.305143671443,142.328191360143,142.344934524309,142.365036656317,142.382399937207,142.396455927099,142.406429477838,142.398057895755,142.378317498953,142.372323032782,142.371392856795,142.385758905049,142.394802280701,142.458570998253,142.467924433166,142.470404900965,142.470094842603,142.468647902679,142.467924433166,142.471645136214,142.494589472126,142.522494745436,142.523631626998,142.522494745436,142.526732212422,142.536654087216,142.547971225991,142.556601189593,142.578511997631,142.594531692284,142.608794386851,142.625537551017,142.64279747912,142.643727655107,142.632358840388,142.629206578121,142.630808546777,142.640058628903,142.659643996074,142.676438837083,142.687342563808,142.694680617117,142.700675084188,142.698866408158,142.696644321878,142.693853794817,142.695765822735,142.700158319351,142.705015903961,142.708116490284,142.71679812983,142.726099887899,142.745323520764,142.757157424376,142.779223261145,142.790023635083,142.799738804302,142.807231887242,142.817980585236,142.847074416051,142.855187615716,142.860045201225,142.864437697841,142.869191928764,142.878648715566,142.880354038808,142.909137811261,142.914925571858,142.921746861229,142.934045851934,142.964586622674,142.981381463684,142.988616164205,142.995747511938,143.012697381679,143.050111118633,143.142611932695,143.15671959943,143.22141849207,143.232218866008,143.251029086823,143.268754103819,143.276660597908,143.282706740024,143.29696943639,143.314074334863,143.328130323855,143.355467157283,143.360479770625,143.358412713976,143.351746454235,143.353400099735,143.358206008401,143.359187860331,143.356087274008,143.349110955906,143.341876255385,143.33805219865,143.337535434712,143.34027428583,143.343633253672,143.344925164864,143.342186313747,143.333194614939,143.331282587022,143.333452997358,143.342754755428,143.350196160624,143.363993768098,143.383837517687,143.406988560074,143.418357374793,143.437684361344,143.459905226845,143.547135045146,143.564601678824,143.581396518934,143.589199660236,143.591370070572,143.591370070572,143.587959425887,143.581241490203,143.576435582436,143.578864374291,143.585995722025,143.59550418477,143.651211378602,143.733790317869,143.776940138576,143.784639927091,143.788774042188,143.79476850836,143.816162550661,143.826342807874,143.835644565944,143.858433873125,143.899154901078,143.960753209193,143.980700310671,143.998425327667,144.020077753286,144.064932896336,144.100072870167,144.150974156232,144.18037804631,144.19009321463,144.201565383036,144.211073846681,144.215156284935,144.218928663927,144.238152296791,144.253293492301,144.268021274862,144.276599563419,144.288278435601,144.312669713237,144.324348586318,144.353287388402,144.37602501784,144.422585484133,144.435711298038,144.452557814991,144.492658726219,144.60278120269,144.620041131693,144.662519158832,144.681897821327,144.698020867869,144.705824009171,144.705513950808,144.717296176677,144.724479201254,144.728148228358,144.729078404345,144.740705600583,144.766905552449,144.8109338732,144.830984328364,144.872118768366,144.890153842825,144.910927769301,144.956248000345,144.975471633209,144.985858595997,144.97743533797,144.96048546823,144.945085891201,144.933923782057,144.939194777817,144.962449172092,144.971234166224,144.976401809196,144.993144973362,145.008441196704,145.120785761254,145.217937452551,145.250441928952,145.291421340223,145.334106072937,145.375963983351,145.45079145726,145.493786249236,145.536574334738,145.572592807712,145.744623650661,145.786946649069,145.829889765101,145.896138951351,145.918359816852,145.939753860053,145.959597609642,145.966315546225,145.969364454806,145.973550245847,145.983472120642,145.992257114774,146.031014438865,146.06233035686,146.076282993965,146.096850213966,146.159120314751,146.182736444231,146.19896284356,146.216222771664,146.222837356359,146.229245232781,146.243559605092,146.266607293791,146.301127150897,146.369495070641,146.385049677301,146.431920201056,146.442152134214,146.453314244257,146.464062942251,146.47320966979,146.484630162252,146.496567417752,146.504267206266,146.514550816267,146.535376417787,146.545194939795,146.624053176013,146.638005813118,146.670768671037,146.689217156646,146.710921259109,146.735829298883,146.756396518884,146.771124302345,146.785386997812,146.81272383034,146.820733677217,146.829311964875,146.84688195224,146.878766311016,146.906051466702,146.931114537006,146.956125929568,146.962327102214,146.966357863624,146.97379926972,146.990232374624,147.00532189419,147.016173944072,147.044906040581,147.038601516047,147.040978631958,147.051520624377,147.09389529783,147.106917758947,147.196317986686,147.188566522227,147.176835972302,147.147897170218,147.132859328395,147.119836867278,147.108933139653,147.100096469576,147.093791945941,147.09001956605,147.086453891734,147.084593540659,147.081647983967,147.079322544899,147.079632603262,147.082578159954,147.091879918024,147.09389529783,147.097719353665,147.1245910991,147.134719680369,147.14417646717,147.154046666021,147.165260451109,147.184329055242,147.215851678812,147.266701288034,147.272023960637,147.286751744098,147.306337112168,147.324010451421,147.340288527593,147.348246697627,147.360804070751,147.369175652834,147.382198113952,147.39661583905,147.408604771393,147.419560174962,147.44674197786,147.457490675854,147.475629104,147.483690626821,147.50229414296,147.520122511844,147.5336617369,147.538932732659,147.556761102443,147.672361282048,147.67794233617,147.694737177179,147.703418816725,147.713805780412,147.731634149296,147.741297641673,147.871780634369,147.898600702061,147.909711135261,147.915963982951,147.921286655555,147.929296503331,147.94066531805,147.949346959395,147.970947707271,147.996889275819,148.001333449279,147.995752395157,147.991411573585,147.999473098205,148.035956659172,148.045465122817,148.034303012774,148.031925896863,148.042312859651,148.043398065268,148.065567254825,148.074352248058,148.077814568687,148.079261508612,148.076264275976,148.063035110182,148.059934523859,148.06758263643,148.085204298839,148.120809360663,148.130989617876,148.134038528255,148.137242465567,148.141893344602,148.14659590138,148.148766310817,148.146905958843,148.14783613483,148.150316604428,148.154812452932,148.161788771934,148.171400588366,148.185404901415,148.19796227364,148.214860468336,148.217030877773,148.214033645137,148.206178826991,148.195120070635,148.122979771,148.123289830261,148.13465864498,148.160393507954,148.216824172198,148.242972447221,148.459806757276,148.676641067331,148.893578729275,149.11041303933,149.327299026229,149.544185012228,149.761070998228,149.972075076304,149.972075076304,null,146.626800977,146.634532097,146.642588738,146.6513778,146.660899285,146.657562696,146.652028842,146.644053582,146.582774285,146.576019727,146.566172722,146.558441602,146.538910352,146.516123894,146.494639519,146.479746941,146.47136478,146.489756707,146.534678582,146.580577019,146.602305535,146.626800977,146.626800977,null,145.335215691,145.343435092,145.344411655,145.343272332,145.345713738,145.3545028,145.361013217,145.361338738,145.352549675,145.352305535,145.35059655,145.348317905,145.345713738,145.319590691,145.292816602,145.263682488,145.229014519,145.220388217,145.213145379,145.20573978,145.19800866,145.181651238,145.175059441,145.1591903,145.129730665,145.112966342,145.120616082,145.154551629,145.175791863,145.187673373,145.202403191,145.26441491,145.273203972,145.279307488,145.286306186,145.297862175,145.304698113,145.313161655,145.318369988,145.308278842,145.304209832,145.312998894,145.318369988,145.314952019,145.317393425,145.324473504,145.335215691,145.335215691,null,145.441905144,145.454356316,145.463145379,145.494395379,145.488780144,145.468597852,145.427012566,145.414073113,145.376638217,145.353282097,145.324554884,145.315765821,145.283702019,145.282481316,145.279795769,145.270030144,145.297862175,145.292979363,145.290212436,145.291270379,145.297862175,145.306895379,145.313243035,145.318614129,145.324554884,145.364105665,145.379893425,145.425059441,145.441905144,145.441905144],"y":[-37.5102918599814,-37.5308570289999,-37.5485979149999,-37.5560848939999,-37.5528296849999,-37.5479468729999,-37.5420874979999,-37.5355770809999,-37.5197079409999,-37.5108374979999,-37.5127906229999,-37.5293921849999,-37.5240210919999,-37.5158016909999,-37.5663387999999,-37.5840796849999,-37.5971005189999,-37.6202938779999,-37.6485328099999,-37.6910132789999,-37.7001278629999,-37.7103817689999,-37.7174618469999,-37.7263322899999,-37.7347958309999,-37.7409807269999,-37.7462704409999,-37.7553036439999,-37.7614071589999,-37.7776018209999,-37.7832984349999,-37.7859026019999,-37.7867164039999,-37.7985165339999,-37.8235002579999,-37.8170712219999,-37.8103166649999,-37.8025041649999,-37.7929012999999,-37.7894833309999,-37.7902157529999,-37.7863908829999,-37.7758114559999,-37.7896460919999,-37.7894833309999,-37.7963192689999,-37.7981096329999,-37.8038062479999,-37.8204891909999,-37.8235002579999,-37.8111304669999,-37.8234188779999,-37.8571102839999,-37.9185523419999,-37.9851213519999,-38.0806617169999,-38.2201473939999,-38.3978817689999,-38.4728329409999,-38.5721981749999,-38.6342098939999,-38.6386044249999,-38.6443010399999,-38.6849911439999,-38.6823869769999,-38.6727841129999,-38.6596005189999,-38.6547177059999,-38.6801083309999,-38.6768531229999,-38.6791317689999,-38.7032203099999,-38.7045223939999,-38.7013485659999,-38.7006161439999,-38.7101376279999,-38.7196591129999,-38.7316220029999,-38.7398414039999,-38.7260067689999,-38.7074520809999,-38.7006161439999,-38.6950009089999,-38.7017554669999,-38.7058244769999,-38.7144507789999,-38.7559546849999,-38.7837867169999,-38.7916805969999,-38.8088518209999,-38.8179664039999,-38.8190243469999,-38.8179664039999,-38.8204078099999,-38.8262671849999,-38.8331031229999,-38.8384742169999,-38.8512509089999,-38.8633765599999,-38.8732235659999,-38.8793270809999,-38.8993466129999,-38.9098446589999,-38.9118791649999,-38.9066708309999,-38.8934872379999,-38.8685848939999,-38.8583309879999,-38.8571916649999,-38.8585751279999,-38.8551571589999,-38.8468563779999,-38.8373348939999,-38.8275692689999,-38.8179664039999,-38.8014462219999,-38.7902971329999,-38.7912736959999,-38.8104794249999,-38.8238257789999,-38.8402645809999,-38.8692359349999,-38.8791643209999,-38.8859188779999,-38.8918596329999,-38.8999976539999,-38.9074032529999,-38.9109026019999,-38.9151343729999,-38.9240861959999,-38.9294572899999,-38.9376766909999,-38.9493140599999,-38.9650204409999,-38.9757626279999,-39.0051408829999,-39.0199520809999,-39.0269507789999,-39.0303687479999,-39.0303687479999,-39.0236141909999,-39.0282528629999,-39.0646298159999,-39.0717098939999,-39.0733374979999,-39.0780575499999,-39.0891252579999,-39.0974260399999,-39.1080868469999,-39.1263973939999,-39.1364071589999,-39.1431617169999,-39.1449520809999,-39.1400692689999,-39.1280249979999,-39.1185848939999,-39.1058895809999,-39.0889624979999,-39.0827776019999,-39.0778134089999,-39.0643856749999,-39.0552710919999,-39.0376929669999,-39.0280901019999,-38.9960262999999,-38.9396298159999,-38.8683407529999,-38.8197567689999,-38.8316382789999,-38.8469377579999,-38.8654924459999,-38.8964169249999,-38.9001604149999,-38.9087867169999,-38.9066708309999,-38.8957658829999,-38.8291968729999,-38.7595354149999,-38.7179501279999,-38.6747372379999,-38.6596005189999,-38.6686337219999,-38.6962216129999,-38.7006161439999,-38.6691220029999,-38.6501604149999,-38.6408830709999,-38.6386044249999,-38.6462541649999,-38.6774227839999,-38.6801083309999,-38.6617164039999,-38.5934384089999,-38.5783830709999,-38.5746395809999,-38.5504696589999,-38.5427385399999,-38.5367977839999,-38.5305315079999,-38.5258114559999,-38.5153134089999,-38.5021298159999,-38.4889462219999,-38.4757626279999,-38.4597307269999,-38.4428036439999,-38.4269345029999,-38.4132626279999,-38.4152157529999,-38.4198544249999,-38.4244930969999,-38.4269345029999,-38.4240861959999,-38.4120419249999,-38.3990210919999,-38.3927548159999,-38.3851864559999,-38.3685848939999,-38.3519833309999,-38.3444149719999,-38.3390438779999,-38.3275692689999,-38.3108049459999,-38.3018531229999,-38.2852515599999,-38.2448869769999,-38.2345516909999,-38.2282854149999,-38.2268205709999,-38.2345516909999,-38.2345516909999,-38.2388648419999,-38.2453752579999,-38.2472470029999,-38.2379696589999,-38.2317033829999,-38.2331682269999,-38.2414690079999,-38.2555477839999,-38.2648251279999,-38.2728817689999,-38.2819149719999,-38.3062476539999,-38.3108049459999,-38.3143856749999,-38.3244768209999,-38.3357072899999,-38.3503557269999,-38.3619930969999,-38.3860002579999,-38.4132626279999,-38.4008114559999,-38.4064266909999,-38.4152157529999,-38.4265276019999,-38.4362932269999,-38.4450009089999,-38.4559872379999,-38.4821102839999,-38.4889462219999,-38.4939104149999,-38.4987932269999,-38.5103492169999,-38.5030249979999,-38.4821102839999,-38.3513322899999,-38.3420549459999,-38.3381486959999,-38.3331845029999,-38.3233374979999,-38.3165829409999,-38.3204891909999,-38.3263485659999,-38.3313127579999,-38.3422177059999,-38.3727352839999,-38.3790829409999,-38.3785132789999,-38.3728166649999,-38.3479143209999,-38.3414039039999,-38.3337541649999,-38.3239071589999,-38.3136532529999,-38.3049455709999,-38.2960751279999,-38.2828915339999,-38.2758114559999,-38.2583960919999,-38.2487932269999,-38.2398414039999,-38.2235653629999,-38.2062313779999,-38.1593563779999,-38.1261532529999,-38.0881486959999,-38.0516903629999,-38.0235328099999,-38.0181617169999,-38.0092098939999,-38.0023739559999,-37.9962704409999,-37.9600562479999,-37.9200985659999,-37.8993466129999,-37.8819312479999,-37.8679338519999,-37.8698055969999,-37.8993466129999,-37.8931617169999,-37.8985328099999,-37.9113908829999,-37.9273414039999,-37.9408505189999,-37.9476864559999,-37.9542782529999,-37.9594052059999,-37.9613583309999,-37.9679501279999,-37.9974911439999,-38.0057919249999,-38.0171851539999,-38.0476213519999,-38.0582821589999,-38.0715471329999,-38.0842424459999,-38.0914852839999,-38.0982398419999,-38.1049130189999,-38.1115861959999,-38.1120744769999,-38.1086565079999,-38.1032040339999,-38.0973446589999,-38.1063778629999,-38.1066220029999,-38.1184221329999,-38.1465796849999,-38.1578101539999,-38.1593563779999,-38.1779924459999,-38.1730282529999,-38.1632626279999,-38.1246884089999,-38.1460914039999,-38.1648088519999,-38.1901180969999,-38.1959774719999,-38.2095679669999,-38.2146135399999,-38.2183570289999,-38.2184384089999,-38.2214494769999,-38.2380510399999,-38.2496884089999,-38.2618140599999,-38.2858212219999,-38.2925757789999,-38.2902971329999,-38.2950171849999,-38.2994117169999,-38.3026669249999,-38.3033993469999,-38.3010393209999,-38.2922502579999,-38.2902971329999,-38.2933895809999,-38.3012020809999,-38.3567033829999,-38.3957658829999,-38.4016252579999,-38.4034156229999,-38.4064266909999,-38.4117977839999,-38.4283993469999,-38.4343401019999,-38.4473609349999,-38.4506161439999,-38.4652645809999,-38.4685197899999,-38.4752743469999,-38.4857723939999,-38.5336239559999,-38.5401343729999,-38.5474585919999,-38.5564104149999,-38.5678036439999,-38.5756161439999,-38.5803361959999,-38.5851376279999,-38.6005184879999,-38.6438127579999,-38.6529273419999,-38.6569149719999,-38.6661923159999,-38.6835262999999,-38.6911760399999,-38.7193335919999,-38.7217749979999,-38.7281226539999,-38.7430966129999,-38.7611630189999,-38.7803687479999,-38.7833798159999,-38.7863095029999,-38.7901343729999,-38.7909481749999,-38.7892391909999,-38.7901343729999,-38.8065731749999,-38.8142229149999,-38.8429501279999,-38.8539364559999,-38.8583309879999,-38.8501929669999,-38.8236630189999,-38.8179664039999,-38.8146298159999,-38.8000627579999,-38.7968075499999,-38.7837867169999,-38.7643368469999,-38.7582333309999,-38.7559546849999,-38.7627906229999,-38.7562802059999,-38.7428524719999,-38.7264950499999,-38.7111141909999,-38.6664364559999,-38.6447893209999,-38.6359188779999,-38.6187476539999,-38.6011695289999,-38.5966122379999,-38.5873348939999,-38.5851376279999,-38.5783830709999,-38.5370419249999,-38.5258114559999,-38.4727515599999,-38.4431291649999,-38.4195289039999,-38.4146460919999,-38.4098446589999,-38.4078915339999,-38.4074846329999,-38.4064266909999,-38.3848609349999,-38.3785132789999,-38.3744442689999,-38.3728166649999,-38.3765601539999,-38.3853492169999,-38.3964169249999,-38.4064266909999,-38.3970679669999,-38.3903134089999,-38.3717587219999,-38.3671200499999,-38.3669572899999,-38.3737932269999,-38.3927548159999,-38.4056942689999,-38.3986955709999,-38.3654110659999,-38.2990048159999,-38.2828915339999,-38.2814266909999,-38.2828915339999,-38.2799618469999,-38.2710914039999,-38.2618140599999,-38.2675106749999,-38.2842749979999,-38.3087704409999,-38.3381486959999,-38.3536109349999,-38.3729794249999,-38.3864885399999,-38.3998348939999,-38.4027645809999,-38.3990210919999,-38.3971493469999,-38.3937313779999,-38.3922665339999,-38.3957658829999,-38.4132626279999,-38.4195289039999,-38.4314104149999,-38.4397111959999,-38.4343401019999,-38.4237606749999,-38.3981259089999,-38.3864885399999,-38.3805477839999,-38.3762346329999,-38.3737932269999,-38.3728166649999,-38.3750953099999,-38.3812802059999,-38.3907203099999,-38.4027645809999,-38.4065080709999,-38.4016252579999,-38.3929989559999,-38.3864885399999,-38.3768856749999,-38.3586565079999,-38.3443335919999,-38.3363583309999,-38.3204891909999,-38.3060848939999,-38.2911923159999,-38.1730282529999,-38.1276180969999,-38.0699195289999,-38.0601539039999,-38.0594256980827,-37.5643734680611,-37.064610690431,-36.5649512664878,-36.0652401666004,-35.5655290667131,-35.0658696427698,-34.566106866039,-34.0663957661517,-33.9864523252147,-34.0009217262566,-34.0185433895658,-34.0512545706419,-34.0622099751102,-34.0639669742964,-34.069031263582,-34.0770411104589,-34.0843791637674,-34.0892884252207,-34.0894951307956,-34.0868596324661,-34.0775578752957,-34.075232436228,-34.0760075816846,-34.0813819311312,-34.0826738414247,-34.0869629861529,-34.0963164201667,-34.1057215310238,-34.1100106748528,-34.1143514946258,-34.1362106258197,-34.1447372366342,-34.1436520319157,-34.1372958305382,-34.133678481177,-34.140706476123,-34.1457707663078,-34.1640125472413,-34.1691801902136,-34.1722290987939,-34.1765699194662,-34.1988424618102,-34.2086609838174,-34.2158440074949,-34.2186345345561,-34.2138803036331,-34.2019430481332,-34.1708338357129,-34.1490780582058,-34.1270638964816,-34.1100106748528,-34.1031893854818,-34.1074268524673,-34.1261853982375,-34.1304745420665,-34.1304745420665,-34.1265988102869,-34.1168319642238,-34.1216378719902,-34.1241183406889,-34.1246351046263,-34.1237049286395,-34.112232761133,-34.115953464181,-34.1366757138131,-34.1708338357129,-34.1688184550077,-34.1598267561998,-34.1578113745953,-34.1585865209512,-34.1624622536301,-34.1716089820688,-34.1881971166036,-34.1927963187951,-34.1903675269398,-34.1919178196517,-34.1962586394247,-34.2186345345561,-34.2404936657501,-34.2639030896559,-34.2728431125196,-34.2774939915545,-34.2804395482465,-34.2978545059806,-34.3171298147891,-34.3346998021541,-34.3427613258745,-34.3402808571758,-34.3356816549844,-34.3380070940522,-34.3564039037172,-34.3737155086638,-34.4031710746854,-34.4246684706734,-34.4447189267371,-34.5333956849629,-34.5469349100181,-34.5915833465942,-34.6034689270493,-34.6119955378638,-34.6177832975611,-34.6241394998381,-34.6341647274202,-34.643311455859,-34.6655323222589,-34.719534193748,-34.7274406878375,-34.7502299941189,-34.7576714011143,-34.7649577775794,-34.7709005669076,-34.7741561828615,-34.7774117979162,-34.7777218562786,-34.781442560226,-34.7952401668003,-34.7876437310733,-34.7784970026345,-34.7610820449004,-34.7436154112223,-34.7363290338578,-34.7344170059401,-34.7331767715908,-34.7339519179467,-34.7356572411887,-34.7309030084671,-34.7126612275336,-34.7127645812204,-34.7052198214376,-34.6890967748963,-34.6813969872811,-34.6756092257851,-34.6705449356003,-34.6655323222589,-34.6208838838841,-34.6032105446309,-34.5959758441099,-34.5937537569303,-34.5841936164422,-34.5823332662672,-34.5854338516909,-34.591893405856,-34.6034689270493,-34.6148377417684,-34.6208322079401,-34.6297205539604,-34.6524581851971,-34.6618116192109,-34.6748340794292,-34.6793299288332,-34.6670826149707,-34.6618116192109,-34.6580392384201,-34.6580392384201,-34.6812419567509,-34.690595391664,-34.6822754855252,-34.6686845836267,-34.672870374668,-34.6921973612193,-34.6990186496909,-34.7029977351573,-34.7331767715908,-34.7439254695848,-34.7480079078387,-34.7539506980663,-34.770693862232,-34.7925013156832,-34.7911060517029,-34.7828895001503,-34.7843881160188,-34.8014413385469,-34.8062472472127,-34.8170476211508,-34.8355994604468,-34.8458830704473,-34.85911223714,-34.8666053200794,-34.8757520476189,-34.8822116026833,-34.8869658336063,-34.8908415671846,-34.9020036754293,-34.9110470519799,-34.9185918108634,-34.924948012241,-34.9352832981857,-34.955075371831,-34.9628268371888,-34.9792082661486,-35.0066484505655,-35.0660246715014,-35.1072107892466,-35.1457097309194,-35.1788343240448,-35.1880327284277,-35.1995565727776,-35.2093750947848,-35.2259115542748,-35.2334563131583,-35.2494243300688,-35.2673560517404,-35.2863729790297,-35.3054415831625,-35.3145366347579,-35.3210478657664,-35.3290060357999,-35.342700290486,-35.3529322236432,-35.3605286602694,-35.3893124327226,-35.4018181290035,-35.4184062635383,-35.4252275529092,-35.4318938126493,-35.4368547500467,-35.4408338355131,-35.4455880664361,-35.4513241510887,-35.4705994607964,-35.4917351206793,-35.5131291638798,-35.5233610979363,-35.5554004854441,-35.5637203915828,-35.5692497697611,-35.5867680802827,-35.6500717098415,-35.6791138647131,-35.6831446270229,-35.6860901828157,-35.6898108858637,-35.6964771456038,-35.7009213190636,-35.7170960424484,-35.7243307429694,-35.7417973766476,-35.7479985492936,-35.7504790179923,-35.7513058411916,-35.7541997210403,-35.7775574681027,-35.8143510874327,-35.9139315732835,-35.9321733542169,-35.9471595191965,-35.9596652154773,-36.0661186657438,-36.0751620422944,-36.0781075989865,-36.0837920058963,-36.0978479957884,-36.1065813130771,-36.1104570448567,-36.1103020161252,-36.1115422495752,-36.1165548638159,-36.1278720025908,-36.1350033512237,-36.1363986143046,-36.1315927056389,-36.118880303783,-36.0836369771648,-36.0763505998003,-36.0813115371977,-36.0992432588693,-36.0974345837391,-36.0810014788352,-36.0601758764155,-36.0399703916203,-36.0251392562716,-36.0055538882014,-35.9876738415745,-35.9534640437306,-35.8948112932066,-35.8873182111665,-35.873985690787,-35.8676294903087,-35.8511963836062,-35.8511963836062,-35.8572425266213,-35.8697998997456,-35.8760010714923,-35.8729004860686,-35.8395691864688,-35.828975519005,-35.8291305477366,-35.8435999487786,-35.9649362121365,-35.9799740539594,-35.9834880505331,-35.9670032687858,-35.9640577129931,-35.9668482400542,-35.9770284972673,-35.9859685201311,-35.9962004532883,-36.006122328083,-36.0142872045908,-36.0160442028777,-36.0138737925415,-36.0173877909138,-36.0251392562716,-36.0334591606118,-36.0376449516532,-36.0421924779005,-36.0504090312518,-36.0558350557432,-36.0395053036269,-36.0376966284966,-36.0353711885296,-36.0350611310664,-36.0460682105794,-36.0527344694202,-36.0474634736604,-35.983849785739,-35.9786821427667,-35.9805941706844,-35.9850900200884,-35.987570488787,-35.9854000784509,-35.9759949675937,-35.9739279109443,-35.9768734676364,-35.9901543111725,-35.9937716605337,-35.9937716605337,-36.0002828915422,-36.03149545675,-36.0421924779005,-36.0440528298742,-36.043277682619,-36.0463265929978,-36.0668938129991,-36.0689091937043,-36.0695293104293,-36.0736117486833,-36.0800713028484,-36.0974345837391,-36.0875643857878,-36.0996049940752,-36.1157280406166,-36.1178984509527,-36.1118006319936,-36.1030156387607,-36.0947474094654,-36.089993177643,-36.090148207274,-36.0930420880219,-36.1076148409521,-36.1384139950098,-36.1737089975722,-36.1953614231911,-36.2340153944949,-36.2411984190718,-36.2203211398087,-36.2094690899266,-36.2069369434852,-36.2072986786911,-36.203371270068,-36.1974284807398,-36.1894703098069,-36.1793934062807,-36.1680245906624,-36.156242363894,-36.1315927056389,-36.1251331514737,-36.1189319797271,-36.1121106912554,-36.1036357554857,-36.0978996717325,-36.0861691218075,-36.0800713028484,-36.0732500134773,-36.045603122586,-36.0393502739959,-36.0404871555578,-36.0476185041906,-36.0592457004287,-36.0642583146695,-36.0615194635524,-36.0502540016209,-36.0490137672716,-36.049323825634,-36.0519593239636,-36.0616744931833,-36.0763505998003,-36.0624496395392,-36.0080860328441,-35.9946501596771,-35.9796123187535,-35.9666932104233,-35.9596652154773,-35.9573397755102,-35.9596652154773,-35.957649834772,-35.9483997535458,-35.9459709607912,-35.9488131646958,-35.958011569978,-35.9724292950759,-35.99067107511,-35.9963554829192,-35.9596652154773,-35.9568746875168,-35.9439039041418,-35.9397697890445,-35.9394080538386,-35.9445756977103,-35.9459709607912,-35.9983708636245,-36.0012130666297,-36.0050371224652,-36.0141838518033,-36.0253459609473,-36.0353711885296,-36.0426058899499,-36.0452930642235,-36.0490137672716,-36.0592457004287,-36.0703044567853,-36.087047620951,-36.1141777479048,-36.1305591768645,-36.1517465144901,-36.1725721169097,-36.2133448217061,-36.2371159808179,-36.2476579732369,-36.2585100240184,-36.3165426569181,-36.3323556450969,-36.3419157846857,-36.3544214818659,-36.3603642720935,-36.3776242001967,-36.3882178685598,-36.4097152645478,-36.4248564591583,-36.4468706190838,-36.4588595514272,-36.4665076639975,-36.4877983535112,-36.4946713188263,-36.499632257123,-36.5042831361578,-36.5458309873102,-36.5545126277556,-36.5624707977891,-36.569860527941,-36.5766301404686,-36.57957569806,-36.5815910778659,-36.5854668105449,-36.6168860822269,-36.6281515441584,-36.6513025856458,-36.6724899232713,-36.6911967912989,-36.7842143692977,-36.7882451307082,-36.7927926569556,-36.7983737119772,-36.8016810038752,-36.8120162898199,-36.899607842428,-36.987199395036,-37.0747909476441,-37.1623825011515,-37.2499740537596,-37.3375656054683,-37.4251054830316,-37.5102918599814,-37.5102918599814,null,-38.7559546849999,-38.7531877579999,-38.7525367169999,-38.7535132789999,-38.7559546849999,-38.7644182269999,-38.7688127579999,-38.7702776019999,-38.7694637999999,-38.7732072899999,-38.7907854149999,-38.7968075499999,-38.7970516909999,-38.7894833309999,-38.7780087219999,-38.7662085919999,-38.7472470029999,-38.7457007789999,-38.7559546849999,-38.7478166649999,-38.7468401019999,-38.7559546849999,-38.7559546849999,null,-38.5094540339999,-38.5105119769999,-38.5133602839999,-38.5177548159999,-38.5231259089999,-38.5344377579999,-38.5485165339999,-38.5617815079999,-38.5709774719999,-38.5665015599999,-38.5635718729999,-38.5608049459999,-38.5572242169999,-38.5393205709999,-38.5256486959999,-38.5192196589999,-38.5231259089999,-38.5300432269999,-38.5346005189999,-38.5367977839999,-38.5347632789999,-38.5254859349999,-38.5231259089999,-38.5238583309999,-38.5304501279999,-38.5305315079999,-38.5196265599999,-38.4952124979999,-38.4755184879999,-38.4669735659999,-38.4611141909999,-38.4554989559999,-38.4537085919999,-38.4515927059999,-38.4514299459999,-38.4554989559999,-38.4591610659999,-38.4657528629999,-38.4685197899999,-38.4738095029999,-38.4752743469999,-38.4904924459999,-38.4952124979999,-38.5036760399999,-38.5079078099999,-38.5093726539999,-38.5094540339999,-38.5094540339999,null,-38.3165015599999,-38.3217098939999,-38.3285458309999,-38.3651669249999,-38.3690731749999,-38.3728166649999,-38.3749325499999,-38.3790829409999,-38.4154598939999,-38.4283993469999,-38.4206682269999,-38.4143205709999,-38.4026018209999,-38.3905575499999,-38.3793270809999,-38.3586565079999,-38.3244768209999,-38.3178036439999,-38.3101539039999,-38.3026669249999,-38.2965634089999,-38.2953427059999,-38.2998999979999,-38.3063290339999,-38.3108049459999,-38.3234188779999,-38.3244768209999,-38.3150367169999,-38.3165015599999,-38.3165015599999],"text":"","type":"scatter","mode":"lines","line":{"width":1.88976377952756,"color":"rgba(89,89,89,1)","dash":"solid"},"fill":"toself","fillcolor":"rgba(252,252,252,1)","hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[141.130001666667,141.3,141.48,147.16,148.1050025,143.58,141.15,148.63,148.79999,148.79999,148.85,141.45999,141.29,141.352,141.42,141.409995,142.16,141.62,141.66,148.9649925,141.189995,142.45999,142.53999,141.93,142.012,141.95999,148.669995,147.7600025,147.830005,148.179994,147.953326666667,148.57,148.469995,147.17917890411,148.7900025,146.866666666667,146.830005,146.724998333333,146.43249625,148.299311724138,149.046,148.984,147.826666666667,149.206666666667,147.60001,147.42,147.153331666667,148.31,147.14,147.304445555556,148.21,147.41333,146.633333333333,147.38,146.907994,146.622002,147.04001,146.753336666667,147.229995,147.51999,147.38,147.439996666667,147.972628947368,146.73999,146.67999,146.546673333333,147.28,147.89999,147.270005,147.92,147.56,147.969995,147.16,148.28,148.389995,147.42,147.98,148.399996666667,147.12,147.56,147.227271818182,148.399996666667,148.253336666667,147.60001,148.304,145.4199975,140.98,141.029995,148.26001,147.535557777778,143.409995,147.96666,147.95999,147.56,148.02,147.590005,148.449995,148.25,147.95999,148.04001,147.94,144.246663333333,142.14,141.229995,148.32001,148.54001,146.16,146.23999375,146.509995,146.553336666667,146.746665833333,146.60001,146.542861428571,141.28,141.279996666667,146.146666666667,146.12,146.316,147.384995,145.65,146.949998333333,146.38,147.053336666667,146.846666666667,147.02,146.969995,146.773336666667,147.463992,142.4283325,142.49,146.60001,146.340003333333,146.766673333333,147.659998,147.846666666667,146.75,141.89999,146.57,147.79999,141.65,146.66,141.3,142.469995,149.44,146.60001,146.610005,147.79999,142.310005,147.12,146.509995,146.51999,146.665712142857,147.07,147.29999,147.23999,141.17999,147.080002,147.34,147.32001,141.34,141.3,143.64,147.26001,147.969995,147.283998,147.417774444444,147.41333,147.886663333333,141.64,147.906663333333,147.486666666667,148.12,148.009995,147.56,148.01999,147.60001,149.0225,149.182854285714,147.54,149,147.401901904762,147.616925384615,148.93,148.909995,147.679996666667,147.5850025,148.95999,147.773336666667,149.566666666667,148.10001,145.893326666667,145.988,141.449995,141.626666666667,147.86,148.3250075,149.543336666667,145.969995,141.606673333333,141.7199975,146.459996666667,143.1549975,148.36,145.89999625,141.78,141,149.48,143.38,141.45999,141.53999,141.42,141.45999,141.66,141.346666666667,146.76001,141.487688846154,141.189995,141.08,141.24999,143.24999,141.199996,146.56,141.78,141.25999,141.242214444444,141.175992,141.73999,141.88,141.486666666667,141.348335,143.51,141.3350025,141.42,141.47333,141.78,141.88,141.92,141.84,141.35,141.620002,141.419996666667,141.73999,141.25999,141.75999,141.52,141.53999,141.02,147.60001,146.614668666667,146.51999,146.54001,147.93,141.98,147.54,143.48,143.7,141.830005,141.73999,147.84,149.08,148.353333333333,141.37,141.428,141.485712857143,141.8,146.927995,141.36,147.09334,146.909995,146.89999,147.633333333333,147.449995,147.145714642857,146.76749875,147.72,147.87,148.15,141.52,147.82001,147.06,141.810005,147.289995,147.110005,147.299996,146.82001,146.875998,147.04001,146.689995,147.23999,147.29999,147.28,148.253336666667,147.57,141.21,148.456658333333,147.95999,148,147.7,148.45999,148.39999,147.57429,141.8,141.52,147.955998,147.87,147.67999,147.729995,148.36,148.39999,148.503996,148.546673333333,147.729995,141.610005,141.48,141.543328333333,141.62,141.64,141.67999,141.63,141.693331666667,141.51,141.53999,141.7,141.66,141.66,149.416663333333,148.565,141.049333333333,141.015553333333,142.35,148.51999,147.68666,147.550005,147.766673333333,148.39999,148.573333333333,148.155,148.51999,148.14,148.115082786885,148.179995,148.22,148.28421,148.389995,146.51999,148.3,147.03,146.632,147.34,148.28,147.89999,147.92,147.289995,148.04001,148.04001,147.98,147.95999,147.789995,147.82001,147.689995,147.61231,148.189995,147.830005,147.78,148.04001,147.971996,148.113338333333,148.34,147.689995,148.16,148.14,147.699996666667,141.399996666667,147.86,148.48,148.6824975,149.66,148.840003333333,149.06,149.6250025,141.449995,141.166663333333,141.325003333333,141.22,141.8699975,149.076669166667,149.073333333333,149.199995,149.09334,149.703071538462,148.13,148.189995,147.346666666667,147.28,146.768568571429,147.29999,147.09334,147,147.79999,147,147.72,148.009995,147.729995,147.727994,148.19333,147.090005,147.88249625,147.939996666667,148.16,147.873333333333,148.469995,148.899996666667,146.47333,146.53,148.01999,147.94,147.199996666667,147.29999,148.28,148.213333333333,142.390433043478,142.189995,142.40333125,142.32001,142.37,146.75,142.16,142.14,147.830005,141.340712857143,141.476838947368,148.34,141.44,147.949995,142.189995,141.14,141.60001,143.43,143.38,148.18666,143.44,143.439996666667,141.979997,141.769995,142.02,148.92,148.82001,148.509995,149.3125025,148.23999,148.772004,149.050005,148.22,148.45999,147.72,148.51999,148.34,147.73999,148.389995,148.10001,149.169995,148.110005,148.189995,148.6849925,148.007776666667,146.969995,147.911427142857,148.426666666667,148,145.590005,147.94,146.9399975,147.67999,148.065,146.64,147.64,148.12,147.253336666667,147.449995,149.5,149.45999,149.689995,149.253336666667,146.591114444444,146.669995,146.72,147.71,147.81,146.620003333333,146.62,147.79999,148.090005,148.08,148.02,148,147.48,147.37,147.046673333333,149.06,148.86,147.48,147.51999,146.95999,149.01999,147.71,147.7249975,147.299998571429,147.9149975,146.71714,149.28,149.142222222222,148.527272727273,149.229995,148.987269090909,149.1275,148.93,149.25,149.25,149.2,149.17999,149.08,149.679996666667,147.754285714286,149.446663333333,149.34,148.088577142857,146.64,148.135,148.110005,146.628571428571,149.795998,147.706666666667,148.14,148.08,147.72,147.94,148.14,146.699996666667,147.84,146.59334,146.864,148.2,147.48,148.82001,146.69749625,148.54,148.1200025,147.84,149.144,148.89999,146.94,148.98,147.78,148.433331666667,148.12,147.7,148.10001,147,146.78,148.050005,149.283998,149.07,147.293326666667,147.909995,148.009995,149.82001,148.92,148.42,148.14,146.56,147.415996,148.425,147.36,148.125,148.146666666667,148.25,146.771424285714,146.60001,147.499996666667,147.06,146.67999,141.2,147.94,147.493333333333,148.01999,148.048,147.7,148.770005,147.28,147.43,143.48,148.046673333333,148.49,141.62,146.79999,146.84,146.7549975,147.66333,147.75,148.009995,147.88,147.94,141.939996666667,148.16,147.689995,147.71,142.13,147.67999,141.983330833333,142.239996,142.332004,141.92,148.110005,148.223996,141.07,149.49,149.29999,149.133333333333,149.22,148.969995,149.29999,148.770005,149.1175025,149.25,149.322224444444,148.9549925,148.82001,148.213333333333,148.733326666667,148.743331666667,148.909995,148.20749875,148.16,148.073333333333,149.219996666667,149.43,148.2024975,149.14,149.06,148.068,148.090005,148.78,149.44,149.38,149.265717142857,146.54001,148.23999,149.08,148.89999,148.14,149.12,149.01999,148.909995,148.12,148.73999,147.471106666667,146.22,147.77,149.173326666667,148.88749625,148.71,149.10001,149.14,149.389995,148.05429,147.469995,149.82001,148.979996666667,148.98,148.003998,148.103338333333,148.953326666667,148.086671666667,149.2149975,149.84,148.94,149.389995,148.16333,148.68666,147.99,149.090005,148.10001,148.959996666667,147.469995,148.694995,148.79999,148.064447777778,149.909995,149.933332222222,149.43,146.29999,146.60001,146.7399975,141.692723636364,143.28,146.125,142.088004,143.81750375,143.549995,143.549995,141.549995,143.533326666667,142.86,143.25999,143.689995,143.110005,143.375,143.5,143.41749625,146.009995,145.93,144.060003333333,143.145,145.836004,143.029995,141.99,143.35,149.46666,145.88,146.14,149.033845384615,142.4249975,142.23999,143.475996,145.887495,145.96666,142.12,145.60001,145.99,146.110005,141.92,142.389995,143.633333333333,143.62,141.689995,141.800003333333,143.409995,143.37,142.84,142.72571,142.57,143.059996666667,143.56,143.24999,142.45999,143.35,141.72,142.13,141.310005,147.270005,149.024,142.409995,143.345716428571,143.04666,146.229995,141.45749875,143.14,142.48,141.90666,141.08,141.45999,147.45999,143.51,143.409995,141.889995,144.969995,146,141.63,141.60001,142.590005,146.330005,142.87,141.37,143.263992,142.89999,141.48,146,145.98,141.4374975,143.100004285714,143.029995,143.6699975,141.389995,141.15,141.352,141.090005,143.383331666667,143.49,141.090005,141.549995,143.86,142.788888888889,143.308004,143.239993333333,142.899995,141,142.049995,147.06,141.65,142.719996666667,143.49,142.320006,142.66,142.89999,142.895996,143.410906363636,142.71,143.146666666667,142.279996666667,141.64,143.189995,141.65,143.353333333333,141.92,145.729995,142.49,142.57,143.66,143.35,142.94,143.89999,142.729995,142.699996666667,143.46666,141.979996666667,149.01999,145.536668333333,146.82001,145.92,143.36,143.07,146.289995,143.269995,144.86,141.7,146.38,149.29999,147.04001],"y":[-37.13,-37.65,-37.35,-37.85,-37.57999,-36.15,-36.54,-37.47,-37.3,-37.36,-37.38,-37.86,-34.8,-34.656,-34.9,-34.78,-35.52,-35.35,-35.42,-37.564995,-37.28,-34.6,-34.9,-34.82,-34.844,-34.949995,-37.48,-37.495,-37.6,-37.224,-37.3333333333333,-37.46,-37.47,-37.7369850684931,-37.74,-37.8266666666667,-37.9,-37.9583308333333,-38.10499875,-36.8910334482759,-37.49,-37.516,-37.1711111111111,-37.6066666666667,-37.43999,-36.9,-36.4066666666667,-37.34,-36.589995,-37.6555555555556,-37.82,-36.8133333333333,-36.9666666666667,-36.74,-37.075996,-37.688,-37.3,-37.52,-36.569995,-36.06,-36.74,-36.9,-37.3842105263158,-37.64,-37.64,-36.3666666666667,-36.56,-37.63,-36.63,-37.37,-37.43999,-37.42,-36.589995,-37.38,-37.31,-36.88,-37.41,-37.31,-36.62,-37.43999,-36.5981781818182,-37.31,-37.3466666666667,-37.47,-37.4119986666667,-37.63,-35.67,-35.69,-37.4,-37.4733333333333,-36.7,-37.5,-37.52,-37.5,-37.48,-37.4933333333333,-37.3,-37.42,-37.52,-37.42,-37.32,-37.3266666666667,-37.6,-37.47,-37.31,-37.33,-37.52,-37.58749625,-37.56,-37.6066666666667,-37.6733333333333,-37.68,-37.7514257142857,-37.72,-37.78,-37.38,-37.48,-37.555998,-37.5549975,-37.5,-37.3666666666667,-37.32,-37.2866666666667,-37.2133333333333,-37.2066666666667,-37.3,-37.1666666666667,-37.051998,-37.2349991666667,-37.4,-37.84,-38.0599966666667,-36.8666666666667,-36.923998,-36.95333,-38.15,-36.71,-36.83,-36.929995,-37.71,-37.92,-38.12,-37.43999,-37.5,-37.9,-37.97,-36.88,-37.16,-37.6,-36.86,-36.72,-36.8057142857143,-37.449995,-36.56,-36.62,-37.62,-36.536,-36.56,-36.5,-37.65,-37.65,-37.01,-37.53,-37.39,-37.463998,-36.4866666666667,-36.6133333333333,-36.7866666666667,-37.88,-36.3033333333333,-36.5,-37.06,-36.29,-36.429995,-36.22,-36.05,-37.5225,-37.5685685714286,-36.0666633333333,-37.46,-36.023809047619,-36.5507684615385,-37.33,-37.5,-36.3133333333333,-36.355,-37.36,-36.7133333333333,-37.38,-37.49,-37.7399966666667,-37.804,-35.87,-35.94666,-36.54,-37.39,-37.466665,-37.73,-35.8533333333333,-35.9349925,-36.6,-37.23,-37.29,-37.65,-35.9,-36.6444444444444,-37.34,-37.49,-35.74,-35.74,-35.82,-35.82,-35.86,-35.9733333333333,-36.54,-36.0169226923077,-36.68,-36.7,-36.72,-37.03,-37.091996,-37.93999,-35.79,-35.92,-35.9955555555556,-37.024,-35.61,-36.05,-36.7866666666667,-37.1249991666667,-36.6,-36.85,-35.92,-37.16,-35.52,-35.82,-35.83,-35.96,-36.589995,-37.063998,-37.07999,-37.07999,-36.65,-37,-37.04,-37.12,-36.54,-37.42,-37.521332,-37.53,-37.41,-36.34,-36.48,-37.46,-37.35,-37.57999,-34.589995,-34.62,-37.19,-37.54,-37.0333333333333,-37.8,-38.095996,-36.62,-36.86,-36.864,-36.915,-36.48,-36.74,-36.78,-36.3133333333333,-36.33,-36.7285696428571,-37.01,-36.3,-36.49,-36.589995,-37.93999,-36.37,-36.72,-38.06,-36.63,-36.85,-36.408,-36.46,-36.563996,-36.589995,-36.589995,-36.74,-36.3,-36.34,-37.3466666666667,-36.17,-37.53,-37.2399966666667,-37.5,-37.57999,-37.42,-37.32,-37.249995,-37.5714242857143,-38.089995,-34.6,-37.579994,-37.52,-37.57999,-37.569995,-37.249995,-37.22,-37.328,-37.2533266666667,-37.42,-34.9,-34.7,-34.7399966666667,-34.72,-34.77333,-34.8,-34.949995,-34.9799983333333,-34.589995,-34.82,-34.87,-34.92,-34.6,-37.5999966666667,-37.54,-34.4546646666667,-34.5177777777778,-35.23,-37.36,-37.3933333333333,-37.42,-37.4733333333333,-37.22,-37.2466633333333,-37.094995,-37.19,-37.16,-37.3331140983607,-37.3,-37.28,-37.5347357894737,-37.56,-37.84,-37.2966666666667,-37.39,-37.72,-37.19,-36.98,-36.88,-36.41,-37.5,-37.16,-37.22,-36.14,-36.21,-36.41,-36.5,-35.96,-36.0246146153846,-36.949995,-36.31,-36.52,-36.18,-36.356,-36.62,-36.86,-36.21,-36.7,-36.81,-37.7933333333333,-35.42,-36.14,-37.61,-37.6175,-37.68,-37.62,-37.5,-37.52,-37.089995,-37.3533333333333,-35.7716633333333,-35.86,-38.0799966666667,-37.5899983333333,-37.6866666666667,-37.5849975,-37.4266633333333,-37.5507661538462,-37.06,-37.06,-36.9933333333333,-37.07999,-36.9485657142857,-36.99,-37.08666,-37.1,-37.42,-37.02,-36.5,-37.52,-36.43999,-37.372,-36.6,-37.2,-36.6575,-36.3133333333333,-37.4,-37.1066666666667,-37.38,-37.78,-37.9399966666667,-37.24,-36.51,-36.57999,-37.07999,-37.07999,-36.98,-37.06,-37.5669560869565,-37.41,-37.4024979166667,-37.429995,-37.7349975,-36.79,-37.5,-37.54,-36.88,-34.8064275,-34.8873678947368,-36.86,-34.749995,-36.3,-38.12,-38.089995,-34.9,-38.52,-38.57999,-36.6866666666667,-37.83,-38.569995,-37.907997,-38.079995,-38.06,-37.41,-37.36,-37.4399966666667,-37.2799975,-37.38,-37.34,-37.39,-37.2,-37.35,-36.42,-37.18,-37.66,-37.36,-37.18,-37.48,-37.47,-37.34,-37.56,-37.225,-37.5422216666667,-37.02,-37.4285671428571,-37.4333266666667,-36.86,-36.78,-36.42,-37.215,-36.62,-36.424995,-37.32,-36,-36.54,-37.1866666666667,-35.96,-37.32,-37.32,-37.47,-37.7266666666667,-36.6866666666667,-36.75999,-36.84,-36.32,-36.02,-36.93999,-36.84,-36.38,-36.78,-36.63,-37.06,-36.35,-37.18,-37.16,-37.2533266666667,-37.569995,-37.67,-37.03,-37.54,-36.93999,-37.42,-36.47,-36.564995,-37.3057142857143,-37.274995,-36.9857142857143,-37.34,-37.2977766666667,-37.5018181818182,-37.52,-37.6854545454545,-37.6425,-37.64,-37.72,-37.6,-37.68,-37.52,-37.72,-37.4266633333333,-36.3742857142857,-37.3133333333333,-37.3,-36.6057128571429,-36.74,-36.825,-36.75999,-36.8685714285714,-37.472,-36.45333,-36.62,-36.8,-36.54,-36.269995,-36.5,-36.769995,-36.749995,-36.7466633333333,-36.848,-36.68,-37.01,-37.7,-36.995,-37.48,-37.01,-36.7,-37.728,-37.78,-36.929995,-37.7,-36.589995,-37.4166633333333,-37.19,-37.34,-37.48,-37.04,-37.03,-36.38,-37.587994,-37.72,-37.2866666666667,-37.12,-37.079995,-37.47,-37.38,-37.14,-36.75999,-36.74,-36.972,-37.424995,-37.07999,-37.205,-37.38,-36.99,-37.0228571428571,-36.86,-37.04,-37.25999,-37.01,-37.35,-36.8,-37.1666666666667,-36.35,-36.612,-36.4,-37.7,-37.34,-37.18,-38.5599966666667,-37.0133333333333,-37.4,-35.72,-36.89,-36.89,-37.025,-36.32,-36.5949975,-36.61,-36.78,-36.8,-37.51,-36.72,-36.35,-36.5699975,-37.06,-36.4,-35.7633325,-37.136,-37.204,-35.64,-36.5,-36.988,-36.61,-37.32,-37.42,-37.2866666666667,-37.43999,-37.67,-37.37,-37.7599966666667,-37.2762475,-37.429995,-37.3666666666667,-37.69,-37.7,-36.9866666666667,-37.76666,-37.7733283333333,-37.37,-37.0125,-36.96,-37.49,-37.68,-37.34,-36.9825,-37.2,-37.31,-37.504,-36.53,-37.78,-37.34,-37.39,-37.3771428571429,-36.93999,-37.42,-37.34,-37.36,-37.38,-37.78,-37.28,-37.67,-37.22,-37.62,-37.4377733333333,-37.97,-36.6416666666667,-37.2333333333333,-37.3975,-37.249995,-37.16,-37.18,-37.37,-36.5428571428571,-37.46,-37.46,-37.1866666666667,-37.249995,-37.101997,-37.2,-37.3533333333333,-36.5333333333333,-37.215,-37.46,-37.71,-37.34,-36.949995,-37.2333333333333,-37.089995,-37.16,-37.22,-37.23,-37.49,-37.2399975,-37.3,-37.6488888888889,-37.53,-37.5111111111111,-37.55,-37.25999,-37.569995,-37.695,-36.9090909090909,-37.88,-37.86,-37.735998,-37.9775,-37.66,-37.85,-38.28,-37.9266633333333,-37.949995,-37.99,-38.1,-38.055998,-37.7349975,-38.069995,-37.9624975,-37.78,-37.83,-37.61,-37.9349975,-37.75999,-37.84,-37.13,-38.12,-37.5266666666667,-37.7,-37.85,-37.5723038461539,-37.865,-36.85,-38.545998,-37.3925,-37.8666666666667,-37.65,-37.5,-37.78,-37.87,-37.79,-36.7,-37.8333333333333,-38.0599966666667,-36.64,-35.98,-37.71,-37.929995,-38.04,-36.93714,-36.83,-37.85,-37.66,-37.92,-37.75999,-37.99,-37.7399966666667,-37.73,-35.35,-37.78,-37.168,-36.68,-37.7057142857143,-37.81,-36.9,-36.4174975,-38.01,-37.61,-37.0066666666667,-36.449995,-36.78,-36.54,-37.9,-37.51,-36.47,-37.429995,-37.55,-36.89,-37.07999,-36.82,-37.04,-37.93999,-36.33,-37.884,-37.78,-35.24,-37.48,-37.57999,-36.6625,-37.98,-37.71,-38.0599966666667,-36.24,-36.42,-36.664,-36.78,-37.65,-37.89,-36.42,-36.7,-37.31,-37.7355533333333,-37.735998,-37.75999,-37.855,-38.02,-36.04,-36.72,-36.91,-37.6,-38.04,-38.024,-36.5599966666667,-37.6,-37.392,-37.5272727272727,-37.96,-38.0266666666667,-36.96,-37.04,-37.69,-36.72,-38.0266666666667,-36.43999,-37.48,-37.93999,-36.82,-37.32,-37.78,-37.96,-38,-37.81,-36.86,-36.8666666666667,-37.13,-37.6,-37.4599966666667,-36.67,-37.68,-37.65,-37.87,-37.04,-37.7,-37.4,-36.12,-37.089995,-37.57999,-36.62],"text":["cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Oct","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Nov","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Dec","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Jan","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Feb","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar","cause: Lightning Mon: Mar"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(202,0,32,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(202,0,32,1)"}},"hoveron":"points","name":"Lightning","legendgroup":"Lightning","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[148.42333,143.63,143.633333333333,147.763331666667,146.49,147.939998,147.14,145.090005,146.72,147.909995,147.949995,147.963996,148.012,144.21,145.38,147.5,146.5,146.66,147.66,144.009995,144.206666666667,144.286663333333,144.25,146.37333,144.389995,144.51999,144.459995,146.270005,145.050005,143.733326666667,143.22,141.008887777778,143.435998,143.912723636364,143.52,143.23999,147.0550025,147.23999,144.235,142.14,143.88,146.5600025,147.89999,147.98,148.13,147.628888888889,146.67999,141.78,147.48,147.76,148.0349975,147.49,148.588004,144.60001,147.86,148.66,146.166664,148.00999875,142.98,142.519996666667,143.56,142.45999,143.856666666667,146.169995,144.090005,143.4124975,143.73999,143.699998,142.56,143.84,141.36,143.872,142.12,143.969995,142.731994,141.899995,145.729995,142.78,145.65,146.753336666667,143.229995,145.78,145.38,143.62,141.616004,146.166663333333,145.560003333333,142.15,142.64,145.76001,145.85,145.816,146.3,143.409995,142.3,142.769995,142.090005,142.17999,145.42,142.67999,143.84,142.25199,143.939996666667,142.409995,145.79999,143.330005,145.7849975,141.8,144.7,143.830005,143.9649925,145.768006,142.873331666667,143.92,143.95999,143.330005,143.3050025,143.399996666667,144.86,143.62,144.29999,146.289995,141.090005,143.17999,145.87,143.169995,143.82001,146.72,146.07,146.51999,145.733326666667,145.729995,146.4374975,145.873333333333,143.399996666667,143.53999,145.799996,145.879996666667],"y":[-37.1033316666667,-36.12,-36.1266666666667,-37.6266666666667,-38,-37.712,-36.4199966666667,-36.01,-37.74,-37.11,-37.48,-37.628,-37.467998,-37.22,-37.34,-37.46,-37.66,-37.86,-36.86,-37.2,-37.2066666666667,-37.2333333333333,-37.71,-37.736665,-37.6975,-37.65,-36.69,-37.7,-35.929995,-37.1133333333333,-36.7,-36.8444444444444,-37.269997,-37.8727272727273,-37.32,-34.78,-36.4,-36.43999,-35.73,-34.22,-37.17,-37.569995,-36.069995,-36.1,-37.57999,-37.3733333333333,-36.92,-37.1,-37.06,-35.9666666666667,-36.365,-37.53,-37.684,-37.249995,-37.43999,-37.64,-37.8999986666667,-37.09499625,-38.069995,-37.11,-37.34,-37.93999,-37.2666633333333,-37.6,-37.47,-37.835,-38.1,-37.14,-36.68,-38.25999,-36.7,-37.384,-36.429995,-37.5,-36.816,-37.105,-36.23,-36.78,-35.96,-36.4266633333333,-37.91,-36.47,-37.1,-37.089995,-36.392,-36.4133333333333,-37.46,-35.72,-36.41,-36.34,-36.02,-36.257997,-36.19,-37.75999,-36.3,-36.79,-35.7799966666667,-36.98,-36.6,-36.68,-38.2399966666667,-36.427996,-37.93999,-36.37,-36.0799966666667,-36.449995,-36.2849975,-36.67,-36.56,-37.2,-36.645,-36.364,-36.7666633333333,-37.22,-37.38,-35.74,-36.335,-35.7466633333333,-36.589995,-37.89,-37.12,-36.19,-36.36,-36.449995,-36.29,-36.749995,-37.2,-36.269995,-36.4,-36.67,-36.3466666666667,-37.47,-36.1625,-36.0466666666667,-36.069995,-36.05,-36.352,-36.429995],"text":["cause: Accident Mon: Oct","cause: Accident Mon: Oct","cause: Accident Mon: Oct","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Nov","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Dec","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Jan","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar","cause: Accident Mon: Mar"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(244,165,130,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(244,165,130,1)"}},"hoveron":"points","name":"Accident","legendgroup":"Accident","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[143.87,144.26001,146.39999,146.5199975,145.526663333333,144.16,142.051424285714,145.770005,145.39999,143.379996666667,144.34,146.71,144.34,144.34,142.67999,145.38,142.159996666667,143.794287142857,143.144,143.64,143.477998,142.87,143.25999,143.189995,144.104004,144.04001,143.64,145.169995,145.169995,143.612004,143.610005,143.42,143.72,143.64,142.62,145.3400025,145.62],"y":[-36.84,-36.71,-38.02,-38.089995,-37.59333,-37.38,-34.2514228571429,-36.79,-37.6,-37.1733333333333,-36.85,-36.66,-36.8,-36.84,-37.96,-38.35,-37.91,-37.4828571428571,-37.852,-37.34,-37.882,-37.9,-37.96,-37.89,-37.408,-37.49,-37.37,-37.55,-37.7449975,-37.816,-37.37,-37.929995,-37.52,-37.975999,-37.88,-37.86,-36.47],"text":["cause: Arson Mon: Oct","cause: Arson Mon: Oct","cause: Arson Mon: Nov","cause: Arson Mon: Nov","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Dec","cause: Arson Mon: Jan","cause: Arson Mon: Jan","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar","cause: Arson Mon: Mar"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(146,197,222,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(146,197,222,1)"}},"hoveron":"points","name":"Arson","legendgroup":"Arson","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[144.17999,143.1425,143.36,144.73999,144.229995,144.49,143.253323333333,146.89999,146.889995],"y":[-38.35,-37.2824975,-37.32,-36.86,-37.28,-36.89,-37.2266666666667,-38.24,-38.18],"text":["cause: Burning_off Mon: Oct","cause: Burning_off Mon: Oct","cause: Burning_off Mon: Oct","cause: Burning_off Mon: Oct","cause: Burning_off Mon: Oct","cause: Burning_off Mon: Oct","cause: Burning_off Mon: Oct","cause: Burning_off Mon: Dec","cause: Burning_off Mon: Dec"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(5,113,176,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(5,113,176,1)"}},"hoveron":"points","name":"Burning_off","legendgroup":"Burning_off","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":29.2835201328352,"r":13.2835201328352,"b":19.9252801992528,"l":19.9252801992528},"font":{"color":"rgba(0,0,0,1)","family":"","size":26.5670402656704},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[140.516836346015,150.422324539651],"tickmode":"array","ticktext":["142 ° E","144 ° E","146 ° E","148 ° E","150 ° E"],"tickvals":[142,144,146,148,150],"categoryorder":"array","categoryarray":["142 ° E","144 ° E","146 ° E","148 ° E","150 ° E"],"nticks":null,"ticks":"","tickcolor":null,"ticklen":6.6417600664176,"tickwidth":0,"showticklabels":false,"tickfont":{"color":null,"family":null,"size":0},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":false,"gridcolor":null,"gridwidth":0,"zeroline":false,"anchor":"y","title":{"text":"","font":{"color":null,"family":null,"size":0}},"scaleanchor":"y","scaleratio":0.803174237195215,"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-39.4028770687892,-33.7285273374254],"tickmode":"array","ticktext":["39 ° S","38 ° S","37 ° S","36 ° S","35 ° S","34 ° S"],"tickvals":[-39,-38,-37,-36,-35,-34],"categoryorder":"array","categoryarray":["39 ° S","38 ° S","37 ° S","36 ° S","35 ° S","34 ° S"],"nticks":null,"ticks":"","tickcolor":null,"ticklen":6.6417600664176,"tickwidth":0,"showticklabels":false,"tickfont":{"color":null,"family":null,"size":0},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":false,"gridcolor":null,"gridwidth":0,"zeroline":false,"anchor":"x","title":{"text":"","font":{"color":null,"family":null,"size":0}},"scaleanchor":"x","scaleratio":1.24505985586904,"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":3.43593414459556,"font":{"color":"rgba(0,0,0,1)","family":"","size":21.2536322125363},"y":0.887514060742407},"annotations":[{"text":"cause","x":1.02,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":26.5670402656704},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"left","yanchor":"bottom","legendTitle":true}],"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","showSendToCloud":false},"source":"A","attrs":{"5bcb707107a7":{"geometry":{},"type":"scatter"},"5bcbcad9e9d":{"x":{},"y":{},"colour":{},"text":{}}},"cur_data":"5bcb707107a7","visdat":{"5bcb707107a7":["function (y) ","x"],"5bcbcad9e9d":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---
# 🔎 Summary of findings

.font_my_2[
.monash-blue[- Majority of the bushfires in 2019-2020 season were caused by **lightning**.]
- 138 bushfires caused by accidents which took up 14% of the total fires. Most of them were ignited in March.
- 37 bushfires were caused by arsonists, and over half of them were in March.
- Very few planned burns were predicted after October 2019 which suggests the correctness of our model.
]

<table class=" lightable-classic table" style="font-family: Cambria; width: auto !important; margin-left: auto; margin-right: auto; font-size: 20px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Cause </th>
 <th style="text-align:right;"> Oct </th>
 <th style="text-align:right;"> Nov </th>
 <th style="text-align:right;"> Dec </th>
 <th style="text-align:right;"> Jan </th>
 <th style="text-align:right;"> Feb </th>
 <th style="text-align:right;"> Mar </th>
 <th style="text-align:left;"> Total </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Lightning </td>
 <td style="text-align:right;"> 19 </td>
 <td style="text-align:right;"> 57 </td>
 <td style="text-align:right;"> 315 </td>
 <td style="text-align:right;"> 266 </td>
 <td style="text-align:right;"> 32 </td>
 <td style="text-align:right;"> 149 </td>
 <td style="text-align:left;"> 838 (0.82) </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Accident </td>
 <td style="text-align:right;"> 3 </td>
 <td style="text-align:right;"> 8 </td>
 <td style="text-align:right;"> 34 </td>
 <td style="text-align:right;"> 13 </td>
 <td style="text-align:right;"> 0 </td>
 <td style="text-align:right;"> 80 </td>
 <td style="text-align:left;"> 138 (0.14) </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Arson </td>
 <td style="text-align:right;"> 2 </td>
 <td style="text-align:right;"> 2 </td>
 <td style="text-align:right;"> 10 </td>
 <td style="text-align:right;"> 2 </td>
 <td style="text-align:right;"> 0 </td>
 <td style="text-align:right;"> 21 </td>
 <td style="text-align:left;"> 37 (0.04) </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Burning_off </td>
 <td style="text-align:right;"> 7 </td>
 <td style="text-align:right;"> 0 </td>
 <td style="text-align:right;"> 2 </td>
 <td style="text-align:right;"> 0 </td>
 <td style="text-align:right;"> 0 </td>
 <td style="text-align:right;"> 0 </td>
 <td style="text-align:left;"> 9 (0.01) </td>
 </tr>
</tbody>
</table>

---
# 📜 Policy implications

.font_my[

- CFA and FFMV may need to consider fire prevention solutions in remote areas of Victoria to reduce the risk of lightning-ignited bushfire. Perhaps new strategically located CFA stations might improve accessibility and speed of response.
- CFA should be asked about the increasing number of accident-caused bushfires. Could it be a policy/coding change. Are there substantially more careless campers, or logging operations?
- Arson is a small source of fires, and primarily a problem closer to populated areas. Possibly sensor network might be recommended.
]

---
# Shiny app: https://ebsmonash.shinyapps.io/VICfire/

---
# 📜 Summary

1. Algorithm to detect bushfire ignition from hotspot data
2. Model to predict the cause of bushfire ignition
3. Prediction of the causes of the 2019-2020 Australia bushfires
4. A complete and adaptable workflow for monitoring and understanding new ignitions from hotspot data
5. Shiny app for exploration of historical fire origins, predicted causes of 2019-2020 fires and future fire risk maps
6. All work conducted with open data and open source software.

---

background-image: url(images/Werombi_Bushfire.jpg)
background-size: cover
class: hide-slide-number split-70
count: false

.column.shade_black[.content[

## Acknowledgements

Slides produced using [Rmarkdown](https://github.com/rstudio/rmarkdown) with [xaringan](https://github.com/yihui/xaringan) styling. Monash style by the kunoichi, Dr Emi Tanaka.

Data and code for analysis is available on [Weihao's GitHub repo](https://github.com/TengMCing/bushfire-paper). Shiny app code is available at [Chang's GitHub repo](https://github.com/timtam3/Bushfire/tree/master/VICfire).

# Thanks for listening!
